Welcome to read the September 2024 Hot Display eNewsletter!

This issue of Hot Display will introduce you to one of the most popular display screens of the time: IPS full-viewing angle TFT display screen. IPS full-viewing angle display screen refers to a display screen that uses IPS (In-Plane Switching) technology. This technology is mainly used in liquid crystal displays (LCDs), and its biggest feature is that it can provide a wider viewing angle and more accurate color reproduction.

Main features of IPS display:

1. Wide viewing angle: The viewing angle of the IPS screen can reach nearly 180 degrees. No matter from which angle you watch, the image on the screen will not show obvious color cast or brightness changes.




2. Accurate color reproduction: IPS technology can better restore the true color, so it is more accurate in color performance, which makes it very suitable for work that requires high color accuracy, such as picture editing, design, etc.




3. Response speed: Although the early IPS screen response speed was relatively slow, with the development of technology, the response speed of modern IPS screens has been greatly improved, which can meet most usage scenarios, including games.




4. Stability: After long-term use, the IPS screen is not prone to water ripples and other phenomena, and the display effect is more stable.

Application of IPS full-viewing angle Display

IPS displays are widely used in a variety of devices, including smartphones, tablets, laptops, TVs, and professional monitors, especially in areas that require high-quality image display, such as design, photography, and video production. IPS full-viewing angle displays have become one of the mainstream choices in modern display technology with their excellent viewing angle performance and color accuracy.

So, let us step into the world of IPS and interpret Hot Display's products, you will definitely gain something!

IPS full viewing angle display series

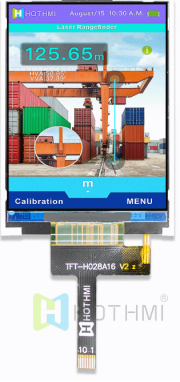

Full viewing angle IPS/2.8 inch TFT/LCD display module/240x320 dot matrix color screen module

/SPI interface/ST7789V/wide temperature range/optional capacitors

? Model: TFT-H028A16QVIST5N10

? Type: TFT vertical screen

? Display pixels: 240x320 Px

? Dimensions (mm): 50.00 (H) x 69.20 (V) x 2.30 (D)

? Display inches: 2.8"

? Effective size (mm): 43.20 (H) x57.60 (V)

? Application: C8051/Arduino/STM32

? Viewing angle: IPS full viewing angle

? Brightness: 500cd/m2

? Pin: FPC-10PIN

? Interface: SPI

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -30~85℃

? Power supply voltage: 3.3V

? Driver chip: ST7789V

?Read more

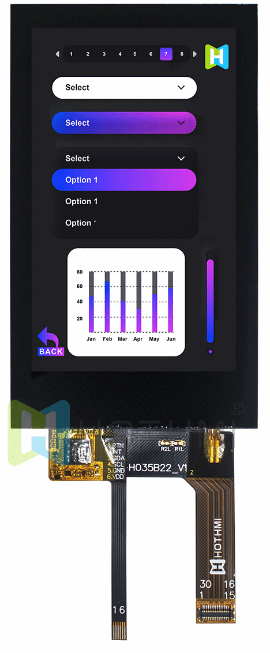

IPS 3.5 inch TFT LCD display module/480x800 pixels/ST7701S/

Capacitive touch / MIPI interface

/ 3.3V / Android compatible

? Model: TFT-H035B22WVIST3C30

? Product type: TFT capacitive touch module

? Dot matrix: 480x800 Px

? Dimensions (mm): 56.0(H)x95.0(V)x5.1

? Diagonal size: 3.5"

? Effective size (mm): 45.36x75.6

? Application: Android motherboard/RK motherboard

? Display viewing angle: IPS (U85/D85/L85/R85)

? Brightness: 350cd/m2

? Pin: FPC-30PIN

? Interface: MIPI 2 lanes

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -20~70℃

? Power supply voltage: 3.3V

? Driver chip: ST7701S

? Touch panel: Capacitive touch (GT911)

?Read more

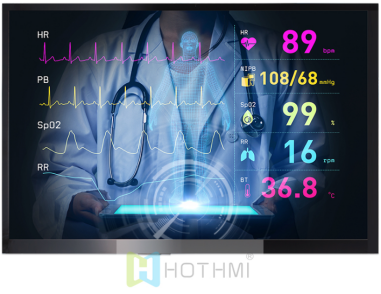

10.1-inch color LCD display/IPS full viewing angle/1280x800 pixels/

Capacitive touch screen/LVDS/high brightness sunlight readable

? Model: TFT-H101D13WXIWZKC40

? Type: TFT LCD color screen

? Display pixels: 1280x800 Px

? Dimensions (mm): 229.46x149.1

? Display inches: 10.1"

? Effective size (mm): 216.96x135.6

? Application: Industrial control equipment

? Viewing angle: IPS full viewing angle

? Brightness: 800cd/M2

? Pin: FPC-40PIN

? Interface: LVDS

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -20~70℃

? Power supply voltage: 3.3V

? Driver chip: TBD

? Read more

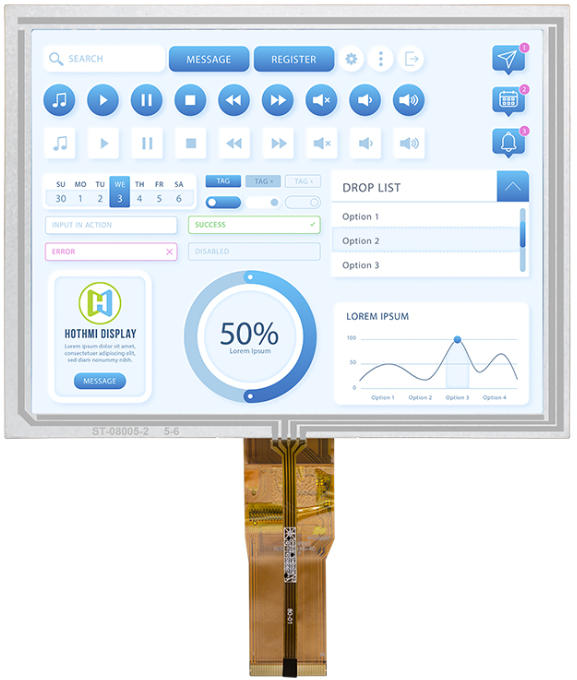

8.0 inch TFT color LCD screen 800x600 pixels IPS resistive touch screen

? Model: TFT-H080E09SVTHX2R50

? Type: TFT LCD resistive screen

? Display content: 800x600 PX

? Dimensions (mm): 183x141x7.25

? AA size (mm): 162x121.5

? Product application: medical, home appliances, industrial control

? View: full viewing angle

? Brightness: 280cd/m2

? Number of PINs: FPC-50PIN

? Touch: capacitive touch screen

? Interface mode: TTL 24-bit

? Special instructions: anti-static ESD 8KV

? Working temperature: -20~70℃

? Power supply voltage: 3.3V

? Driver chip: HX8264+HX8696

? Read more

IPS full-view TFT module

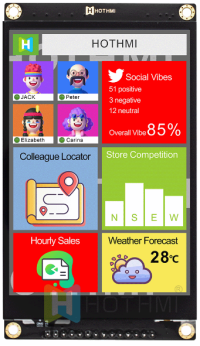

4.0 inch TFT LCD module with capacitive touch screen 320x480 dot matrix SPI

Interface IPS full viewing angle Sunlight readable Compatible with Arduino/STM32

? Model: HTM-H040A27-SPI-A01C

? Type: TFT LCD module with board

? Display pixels: 320x480 dot matrix

? Dimensions (mm): 60.88x108.0x6.3

? Display inches: 4.0"

? Effective size (mm): 55.68x83.52

? Application: handheld devices, instruments and meters

? Viewing angle: IPS (U80/D80/L80/R80)

? Brightness: 450cd/m2

? Pin: FPC-15PIN

? Interface: SPI

? Special reminder: Anti-static ESD 8KV

? Working temperature: -30~80℃

? Power supply voltage: 3.3V

? Driver chip: ST7796

?Read more

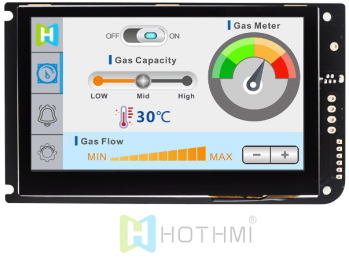

4.3 inch 480x272 dot matrix smart serial port screen TFT LCD display module URAT

Capacitive touch screen HMI IPS sunlight readable Raspberry Pi compatible

? Model: HTM-H043A10-A5C-UART

? Type: UART smart serial port screen module

? Display content: 480x272

? Display inches: 4.3”

? Dimensions (mm): 122.5x73.2x7.9

? VA size (mm): 105.50x68.2

? AA size (mm): 95.04x53.86

? Product application: custom programming display

? Viewing angle: IPS (U80/D80/R80/L80)

? Backlight type or brightness: 500cd/M2

? Connection method PIN number: 10pin

? Interface method: UART/RS232

? Special instructions: with capacitive touch screen

? Working temperature: -20~70℃

? Supply voltage: +5V

?Read more

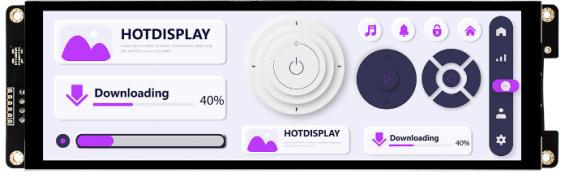

7.84 inch TFT LCD display module URAT HMI IPS 1280x400 smart serial port screen sunlight readable compatible with Raspberry Pi

? Model: HTM-H078A02-UART-A01C

? Type: UART smart serial port screen module

? Display content: 1280x400

? Display inches: 7.84”

? Dimensions (mm): 227.5x69.1x11.0

? VA size (mm): 193.7x62.7

? AA size (mm): 190.08x59.40

? Product application: custom programming display

? Viewing angle: IPS (U80/D80/R80/L80)

? Backlight type or brightness: 600cd/M2

? Connection method PIN number: 10pin

? Interface method: UART/RS232

? Special instructions: anti-static ESD 8KV

? Working temperature: -20~70℃

? Supply voltage: +5V

? Read more

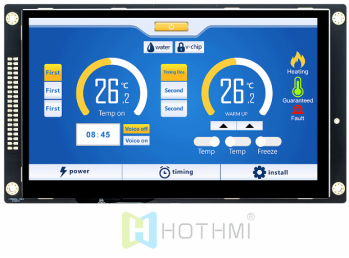

7” TFT LCD display module //1024x600 dots/wide temperature/IPS full viewing angle/sunlight visible/capacitive touch/STM32/RK

? Model: HTM-H070A2-RGB-B06C

? Type: TFT with board module

? Display pixels: 1024x600 Px

? Dimensions (mm): 186.90x108x10.0

? Display inches: 7.0"

? AA size (mm): 154.21 x 85.92

? Application: Industrial computer/medical equipment

? Viewing angle: IPS full viewing angle

? Backlight/brightness: 500cd/M2

? Pins: 40pin

? Interface mode: RGB

? Special instructions: Anti-static ESD 8KV

? Operating temperature: -30~70℃

? Power supply voltage: 5.5V

? Driver chip: T.B.D

? Read more

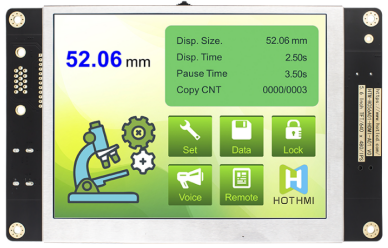

5.6 inch IPS 640x480 px HI TFT LCD module for industrial computer/Raspberry Pi with driver board

? Model: HTM-H056A01-HI-A01

? Type: HI driver-free module

? Display Pixels：640x480

? Dimensions(mm) ：163.5x102x20.7

? Viewport size(mm)：5.6"

? Display size(mm) ：5.6"

? Effective size (mm)：112.9x84.67

? Product application: home appliances,

 medical, industrial control

? Viewing angle: full viewing angle

? brightness：200cd/m2

? Interface：HI/VGA

? Special instructions: Anti-static ESD 8KV

? Operating temperature：-10~60℃

? Supply voltage：9V～12V

? Read more

For more information please contact us directly!
