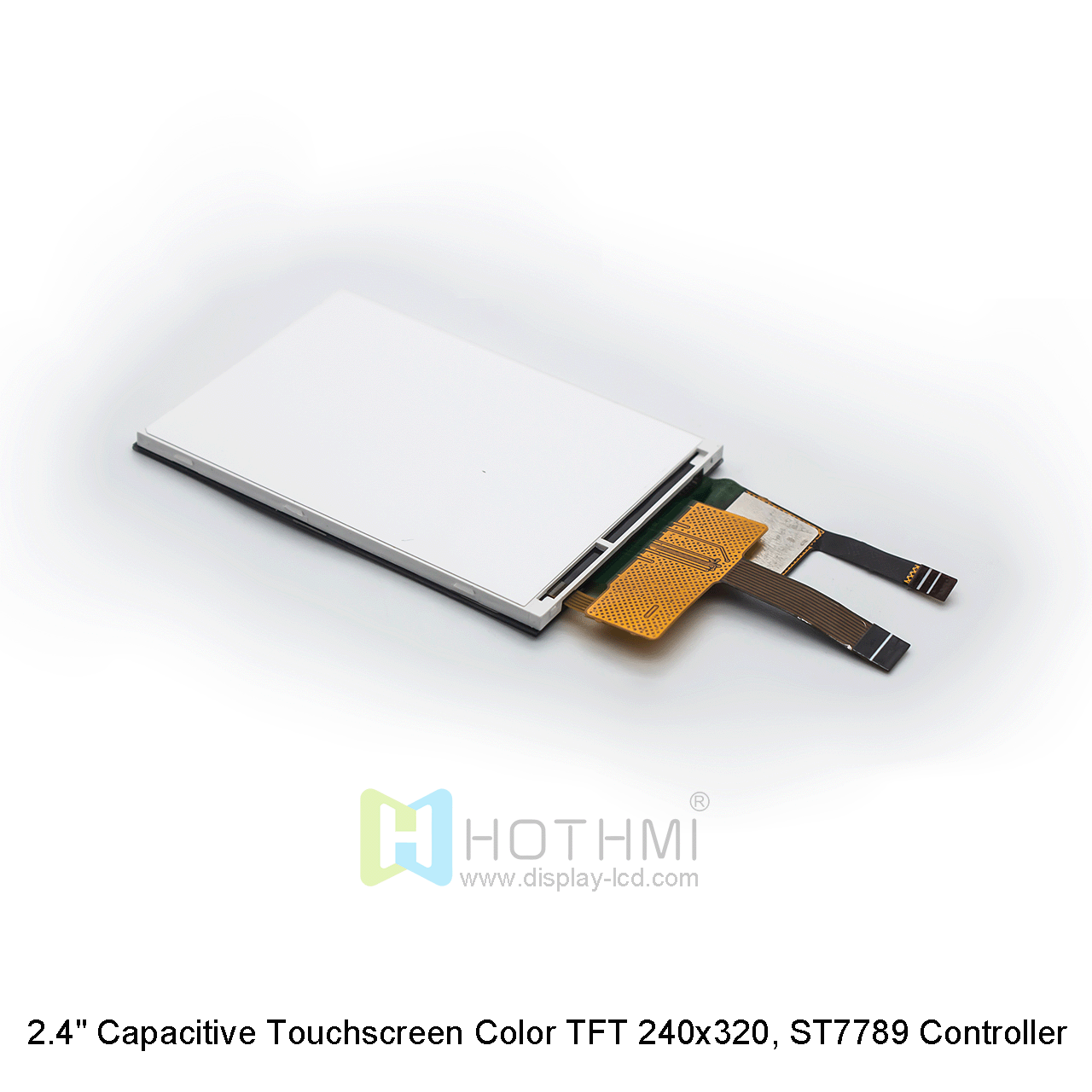

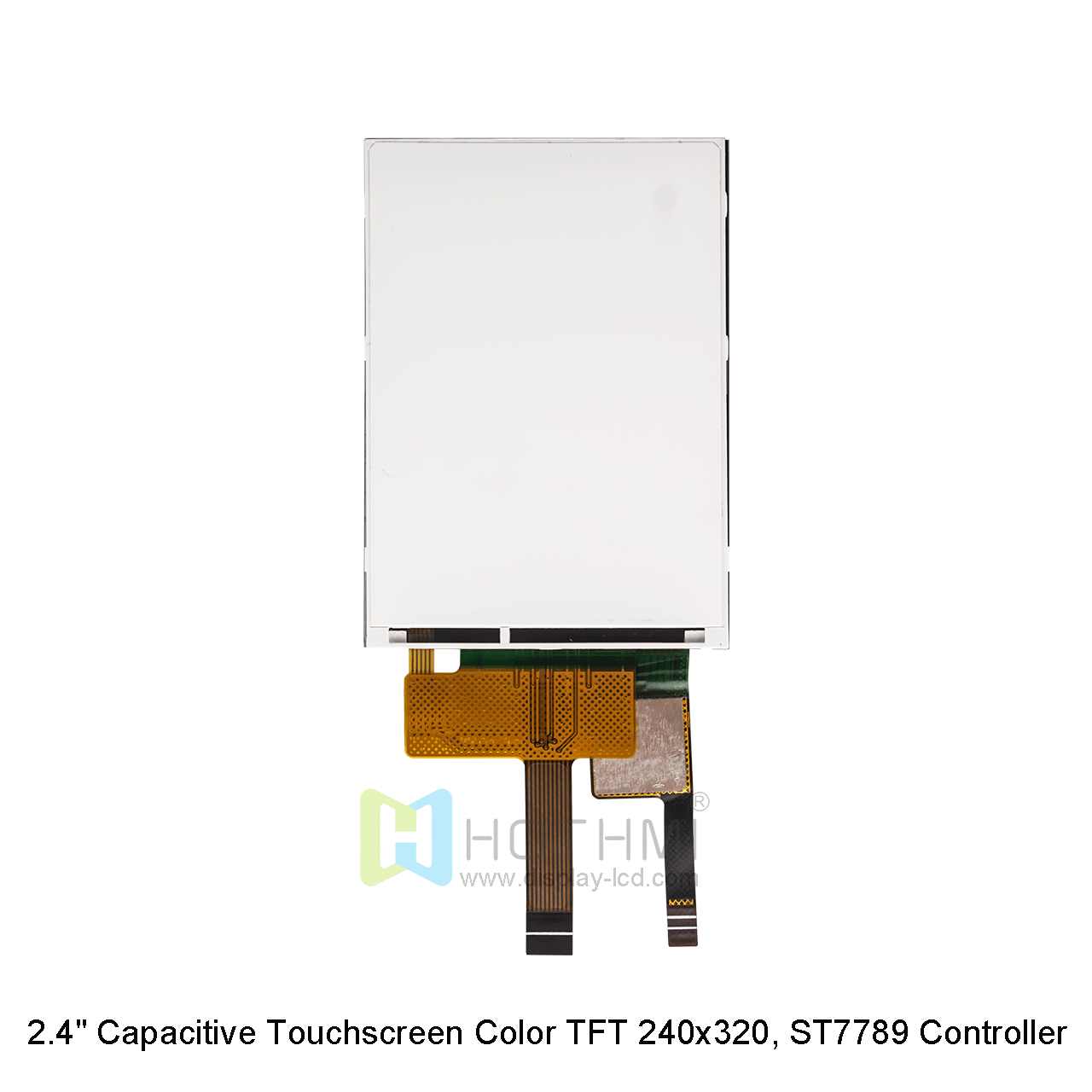

2.4 Inch Capacitive Touchscreen | 240x320 Resolution ST7789 Controller

? Model: TFT-H024A16QVIST4C10

? Type: 2.4 inch Capacitive Touchscreen
? Display pixels: 240x320
? Dimensions (mm): 42.72x59.86x3.7
? Display inches: 2.4"
? AA size (mm): 36.72x48.96
? Application: industrial control systems, handheld electronic devices,
? Viewing angle: U85/D85/R85/L85 (Typ.)
? Backlight/brightness: 450cd/m2
? Pin: FFC-10 pin
? Interface: 4-line 8bit serial I/F
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 3.3V
? Driver IC :ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

STM32-SPI-10PIN+MCU-40Pin main control board
EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
ESP32-C3 driver board/SPI-10 pin
EZUI Universal Adapter Board-10PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
EZUI-H serial port driver board-SPI interface universal
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485
STM32F103RET6 Development Board - Suitable for MCU or SPI TFT Displays

Product Description
Customized Services
Attributes

2.4 inch Capacitive Touchscreen Color TFT 240x320, ST7789 for handheld electronic
The 2.4 inch Capacitive Touchscreen Color TFT 240x320, ST7789 Controller TFT-H024A16QVIST4C10 display offers vivid full color images at 240x320 resolution in a compact 2.4" package, providing crisp, clear images and text, making it ideal for small applications and close viewing. The capacitive touchscreen allows users to quickly and easily input information to the host device.
The TFT-H024A16QVIST4C10 connects to the host via a single 10-pin ZIF connector, allowing for quick and easy installation. This display has a capacitive touchscreen, which is controlled by the FT6336.
Operates over a wide temperature range (-20c to +70c).
This display is also available without a touchscreen,
operating from -20°C to +70°C.
All of our TFT displays are RoHS compliant.
Hot Display is ISO 9001 certified.

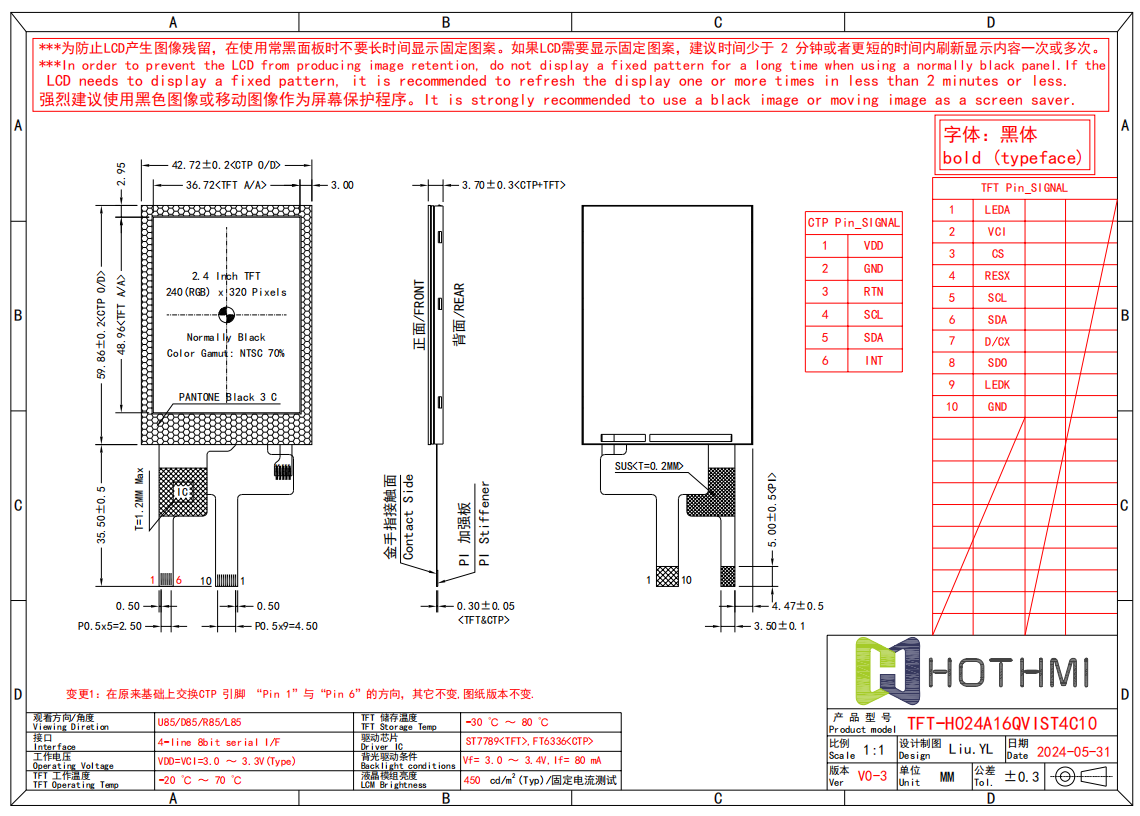

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024A16QVIST4C10
Diagonal size	2.4”	Inch
Resolution	240x320	Dot
Dimensions	42.72x59.86x3.7	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	U85/D85/R85/L85(Typ.)
Aspect ratio	1:1
Backlight type	LED white
TFT driver IC	ST7789
Brightness	450	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
