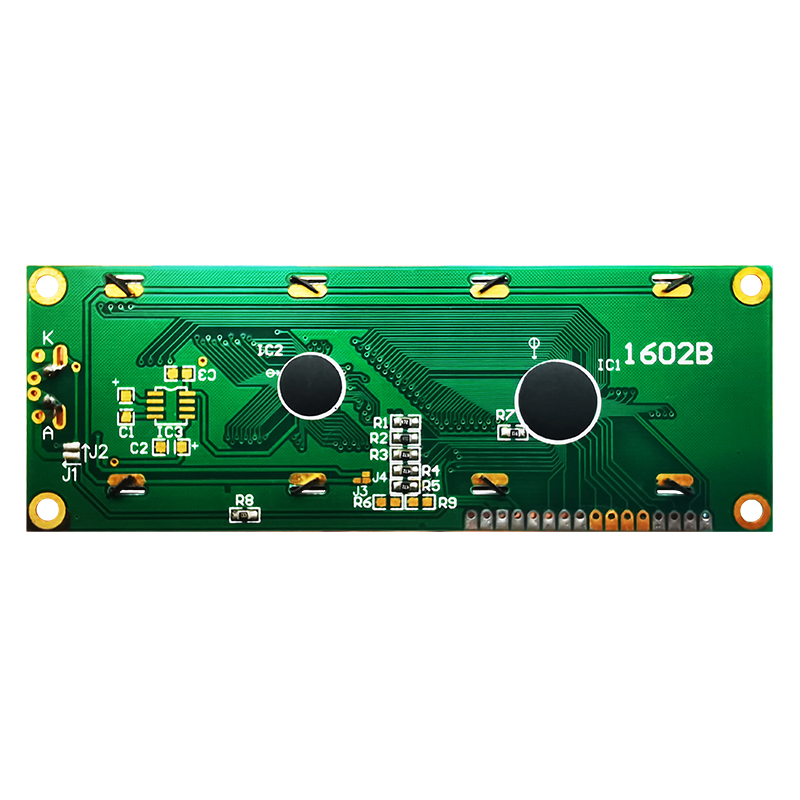

Character LCD Module STN+2X16 Yellow/Green Display with Yellow/Green Backlight Arduino display
This Character LCD Module is a high-quality 32-character single-line LCD display utilizing the ST7066U controller/driver. Here are detailed features of this LCD display:
Startup Display: Upon powering on, the LCD displays characters with black pixels on a bright yellow/green background. This display characteristic may be a default configuration, and adjustments can potentially be made through the controller settings.
Electrical Characteristics: The LCD operates at a voltage of 5V, complying with RoHS standards to ensure adherence to health and environmental requirements.
Operating Temperature Range: With a wide operating temperature range, the LCD is suitable for various environmental conditions, ranging from -20 to 70 degrees Celsius.
Visibility Under Different Lighting Conditions: The HTM1602B is designed for viewing under ambient light or backlight, providing flexibility in different lighting conditions.
Arduino Compatibility: With Arduino/C8051 compatibility, this LCD can be conveniently used with Arduino development boards, offering a user-friendly interface and development experience.
Optimal Viewing Angle: The LCD's optimal viewing angle is specified as 6:00, indicating the best direction for viewing the LCD content.
If the startup display does not meet expectations, it is advisable to check the controller configuration or attempt adjustments through code. Ensure that the connections and power supply meet requirements to ensure proper functioning. For changes to startup display characteristics, consulting relevant documentation or datasheets for detailed configuration information may be necessary.
