HTM-H035A1-MCU-C13 | 3.5 inch TFT Display Module | 320x240 MCU interface TFT display| TFT color display

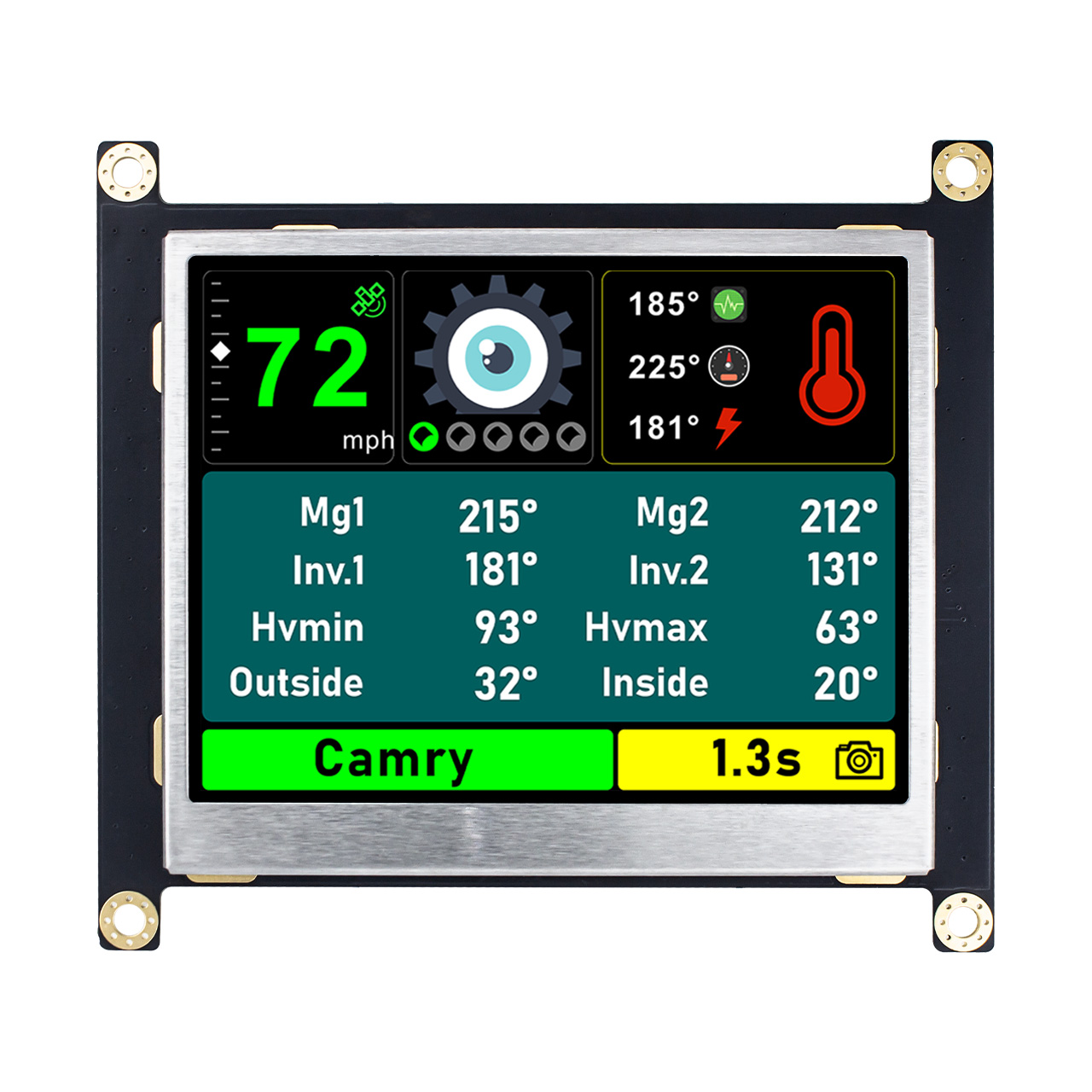

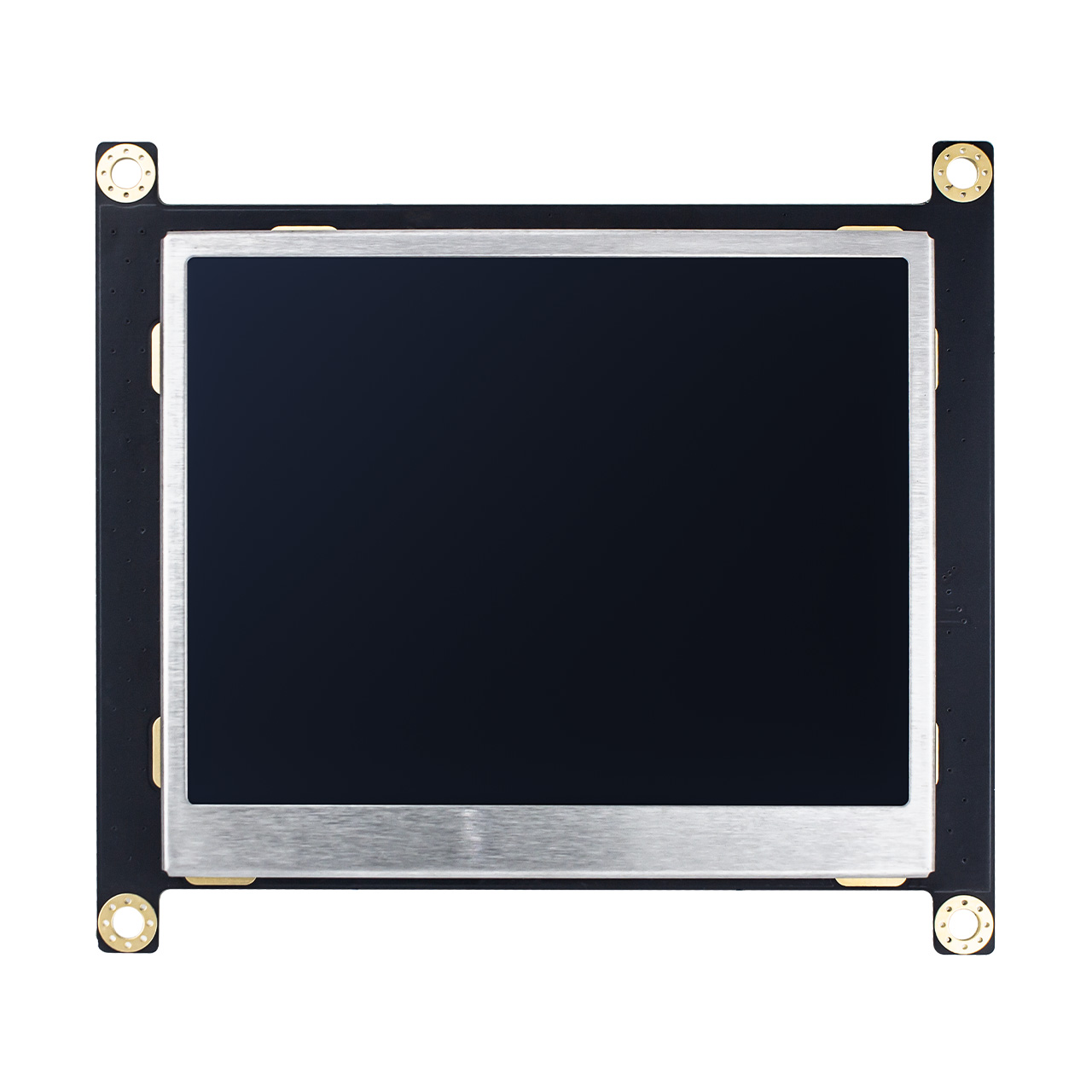

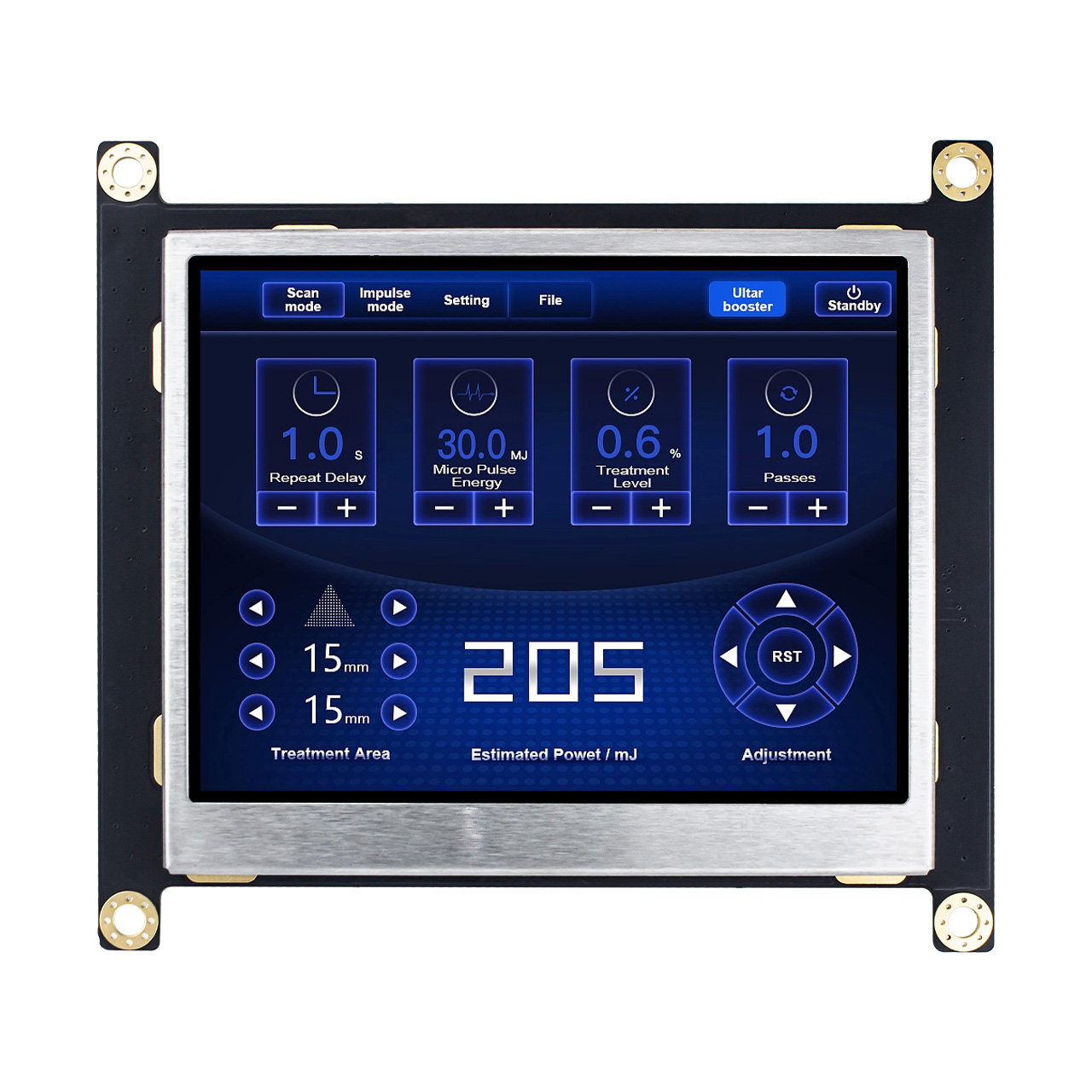

Introducing 3.5 inch TFT Display Module, a high-performance 3.5-inch TFT LCD module designed for a wide range of applications. With a resolution of 320(RGB) x 240 pixels and a normally black display, this module delivers vibrant colors with an NTSC 60% color gamut, ensuring sharp and clear visuals.

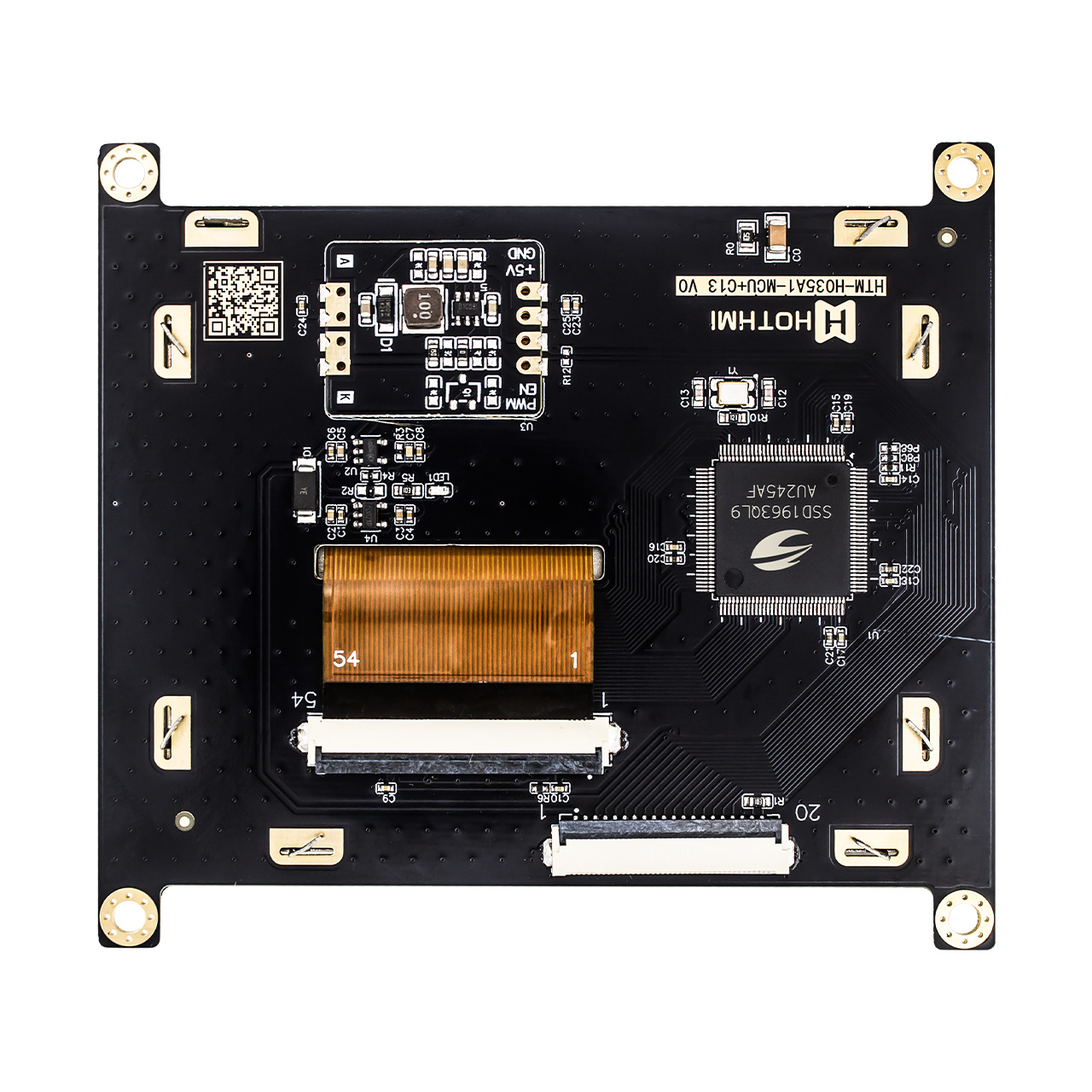

The 3.5 inch TFT Display Module HTM-H035A1-MCU-C13 features a parallel 8080-series MCU 8-bit interface, making it easy to integrate into various systems. It operates at a voltage of 3.3V ± 0.3V and is driven by the SSD1963 IC, offering reliable performance in temperatures ranging from -30°C to +80°C. The module also includes a bright backlight with a typical luminance of 400 cd/m2, ensuring excellent visibility in different lighting conditions.
Ideal for industrial control panels, medical devices, and consumer electronics, this 3.5 inch TFT Display Module combines durability, versatility, and high-quality display performance. Upgrade your display solution with the HTM-H035A1-MCU-C13 for a seamless and visually stunning experience.
