China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Bar Type/ Round TFT LCD Display Panels / 3.4 Inch Round TFT LCD Display With MIPI DSI Interface

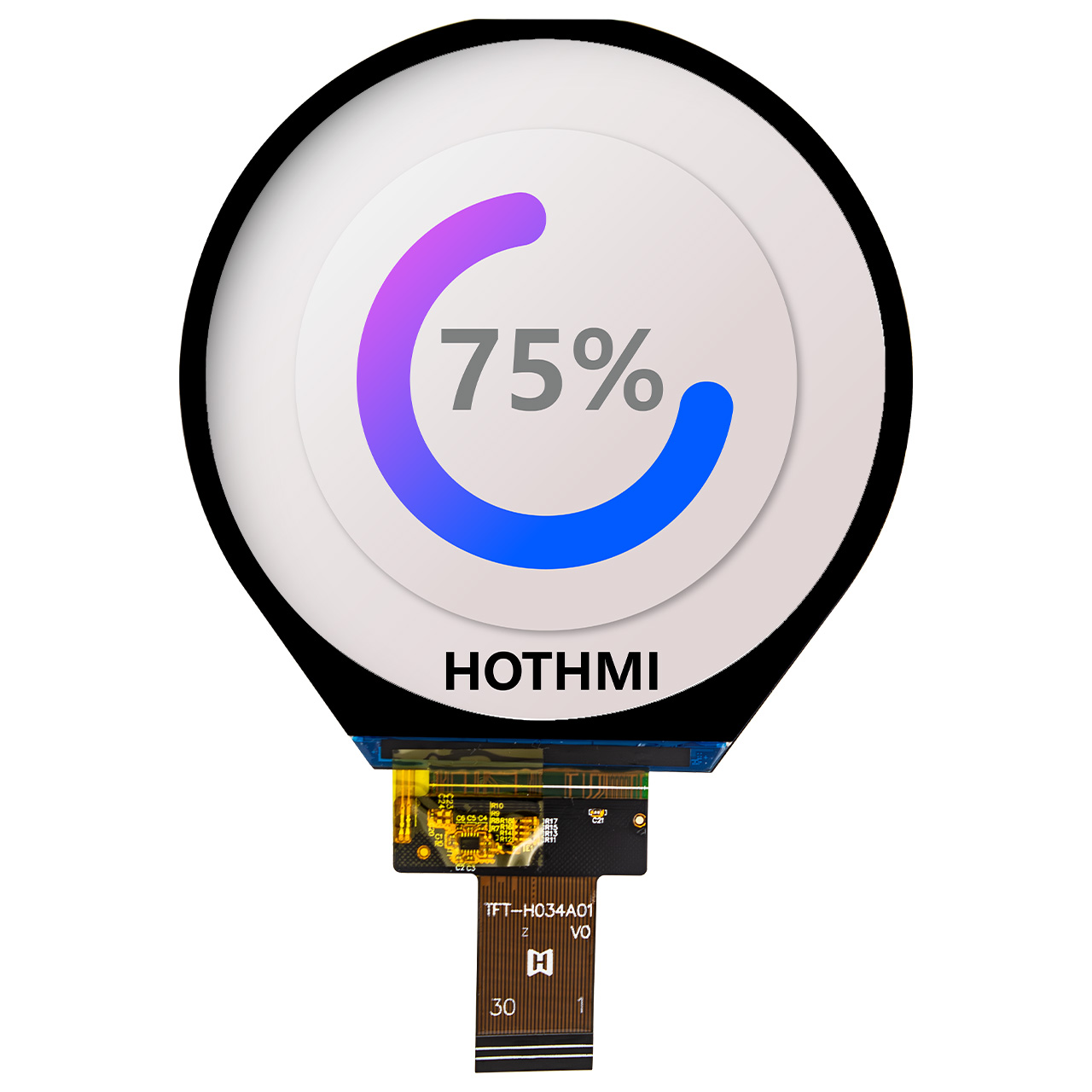

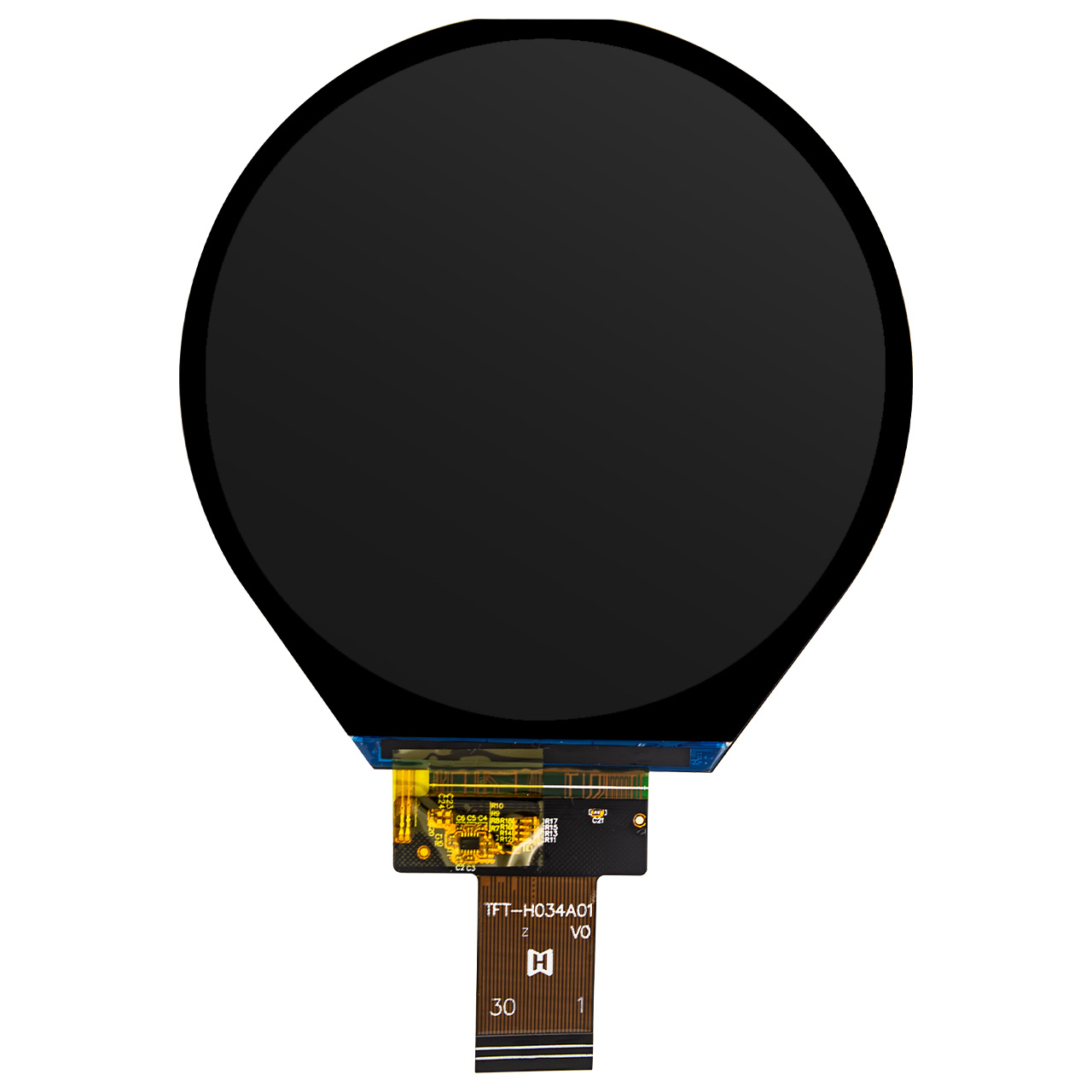

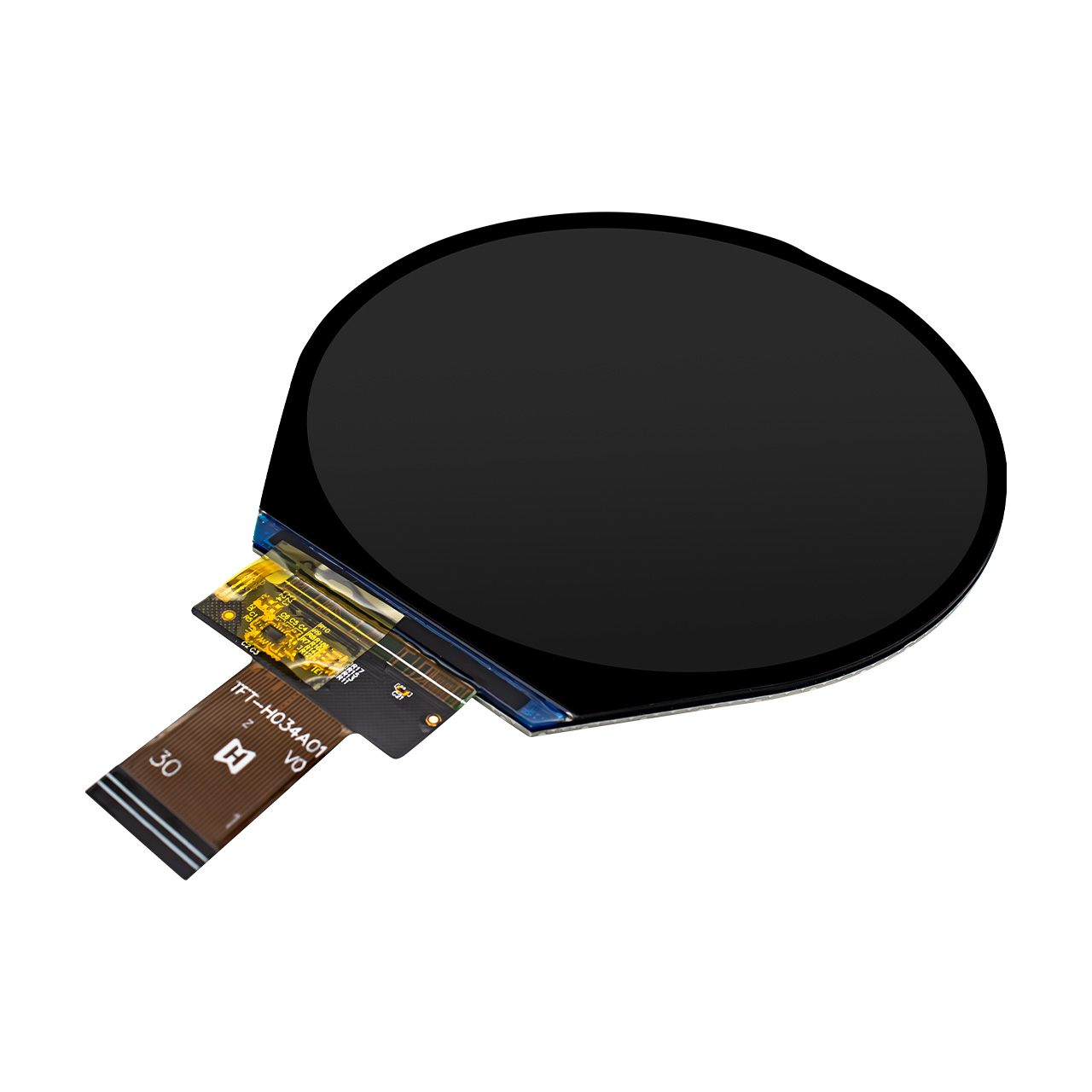

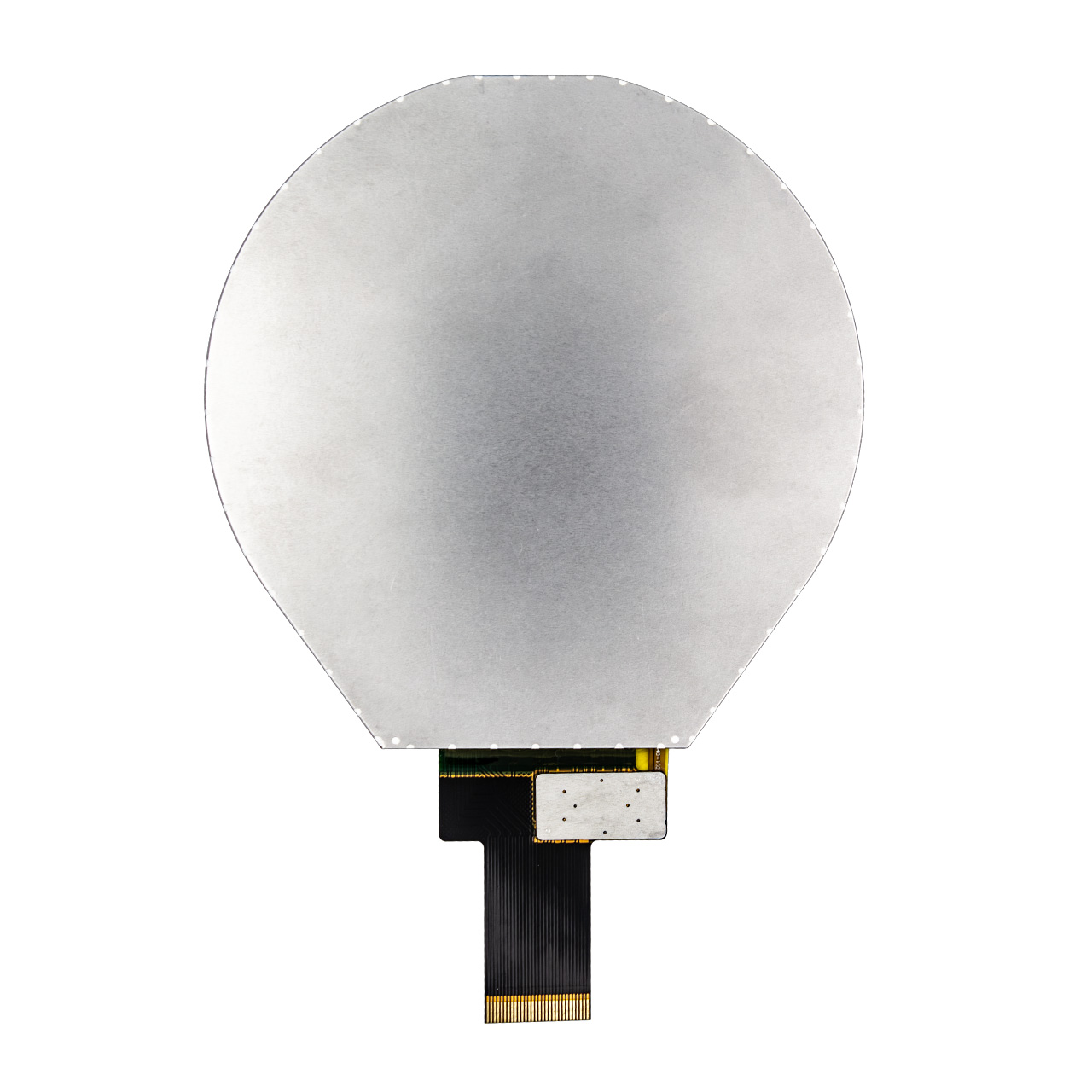

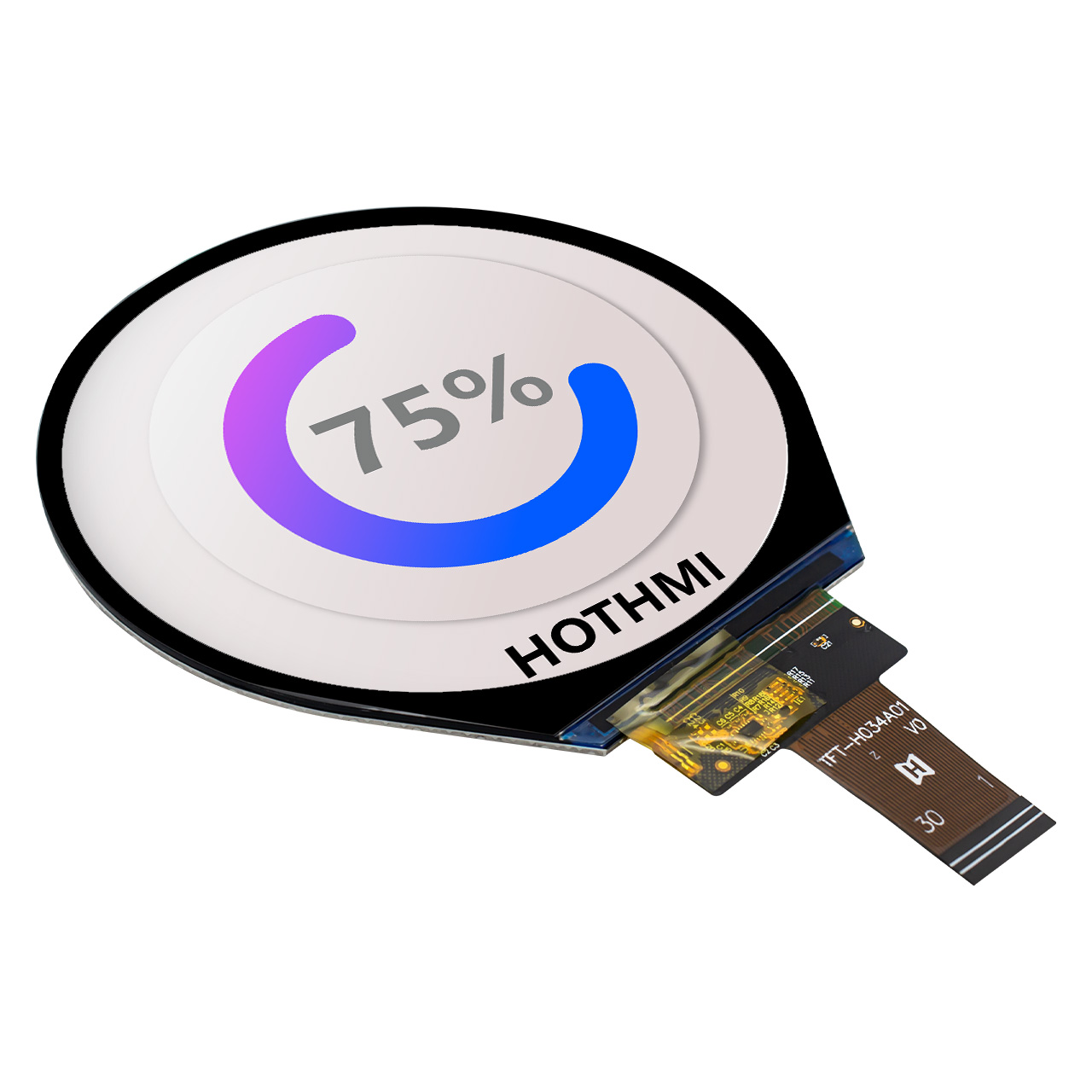

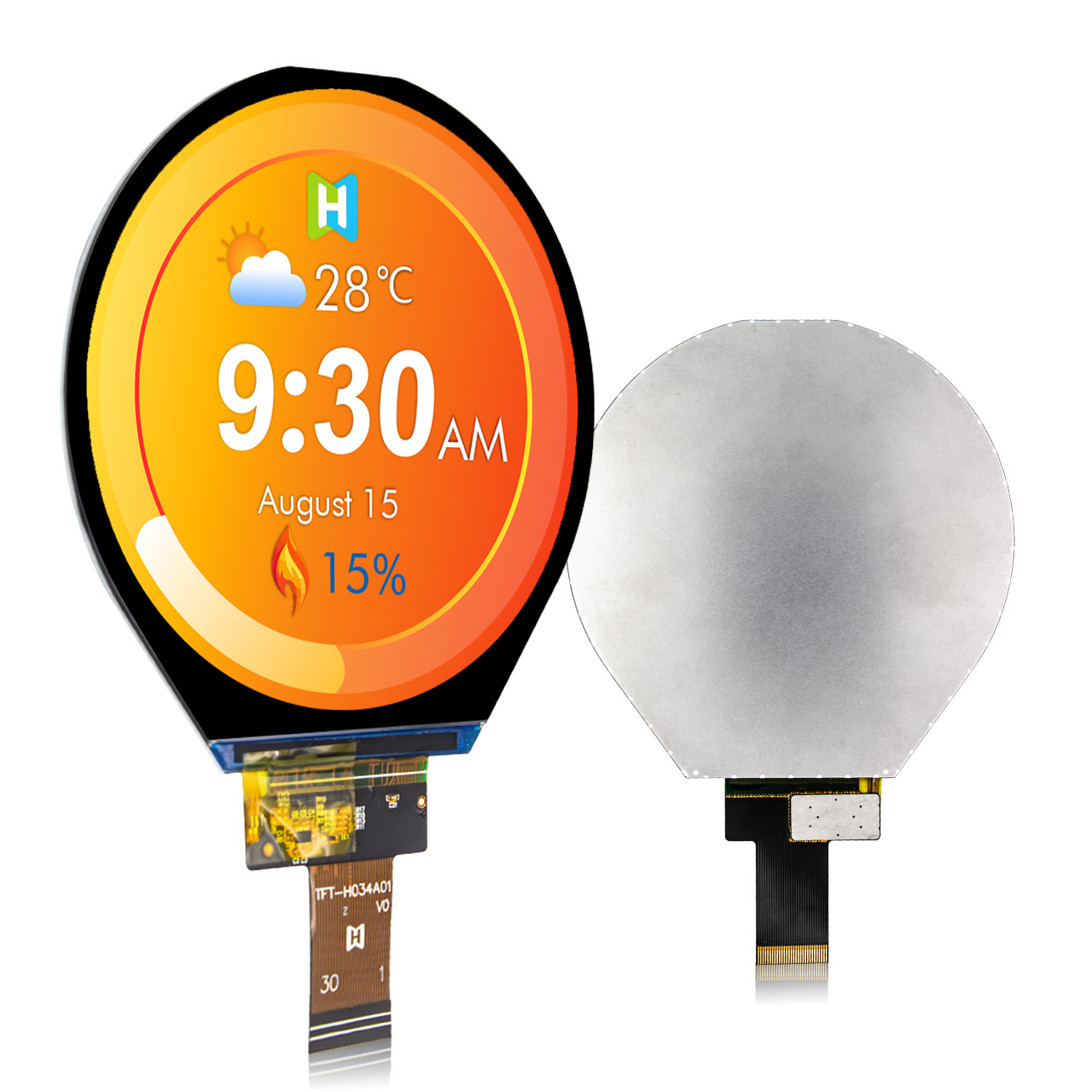

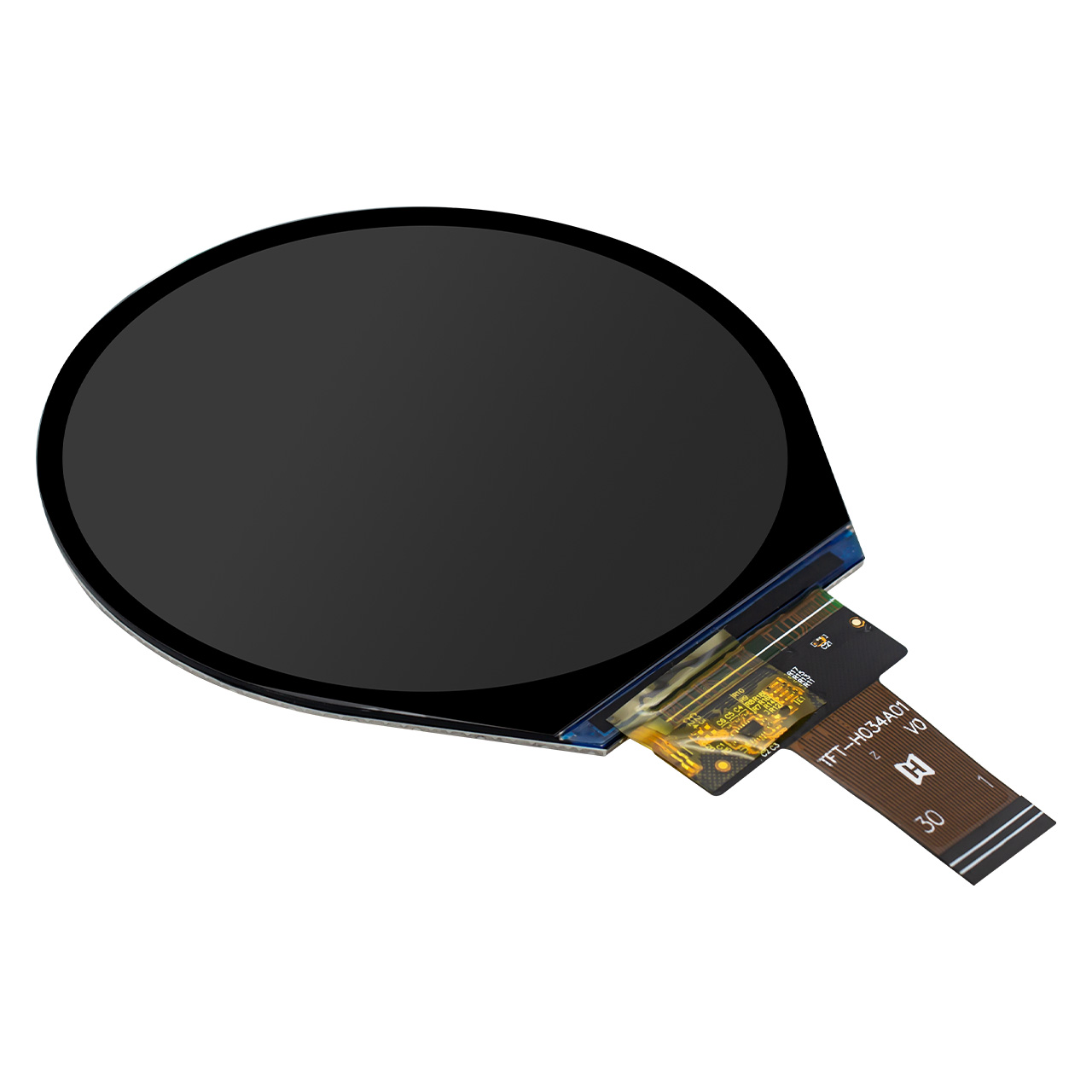

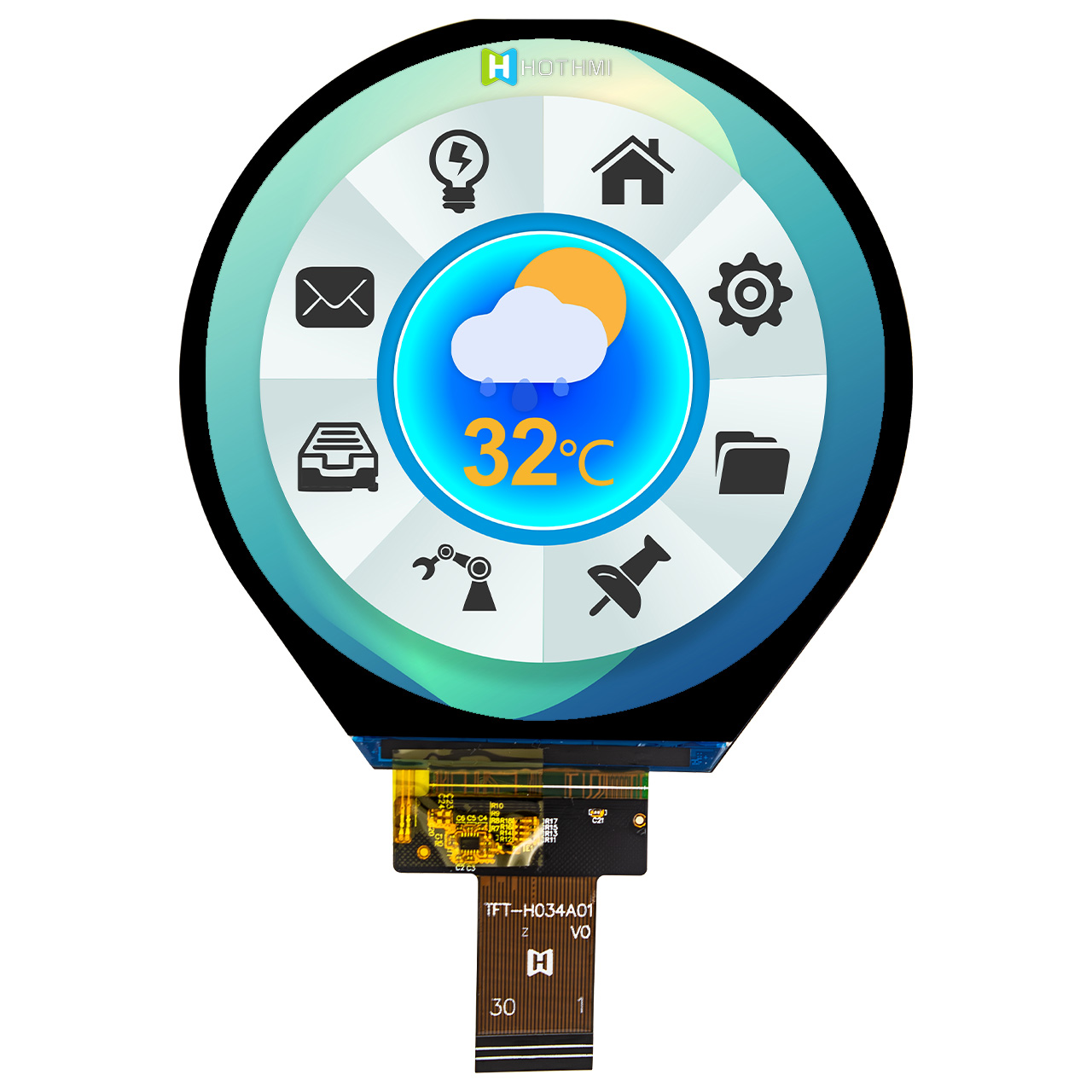

3.4 Inch Round TFT LCD Display With MIPI DSI Interface

? Model: TFT-H034A01ZJINV5N30

? Type: 3.4 Inch Round TFT
? Display pixels: 800x800 Px
? Overall dimensions (Mm): 94.9x96.95x2.2
? Effective size (Mm): 88.4x88.4
? Display inches: 3.4"
? Application: smart home appliances, industrial robots
? Viewing angle: IPS full viewing angle
? Brightness: 550cd/M2
? Pin: FPC-30PIN
? Interface: MIPI
? Special instructions: Anti-static ESD 8KV
? Working temperature: -30~80℃
? Power supply voltage: 3.3V
? Driver chip: NV3051F

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

MIPI interface display to HI driver board Raspberry Pi universal 20pin/30pin/40pin
H034A01 dedicated HI-MIPI adapter board

Product Description
Customized Services
Attributes

TFT-H034A01ZJINV5N30 | 3.4-inch Circular TFT LCD with MIPI DSI Interface, Sunlight-Readable
The TFT-H034A01ZJINV5N30 is a circular IPS TFT-LCD screen with a display diameter of 3.4 inches and a resolution of 800x800 pixels. This circular TFT display features an IPS TFT-LCD panel with a built-in NV3051F driver IC, communicating via the MIPI-DSI interface.

The TFT-H034A01ZJINV5N30 utilizes an IPS panel, offering a higher contrast ratio and a pure black background when the display or pixels are off. The flexible printed circuit board (FPC) design allows for simple plug-in connection between the display and the main control board, making assembly and disassembly easy. This version is non-touch; a capacitive touchscreen version, the TFT-H034A01ZJINV4C30, is also available. Users can also customize the cover to match the product. If the cable is not suitable, we can also customize the FPC. Regardless of the user's needs, we provide the best solution.

Display modules are suitable for smart homes, Android/RK motherboards, industrial equipment, and smart robots. They are also ideal for home automation products, white goods, and video systems.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

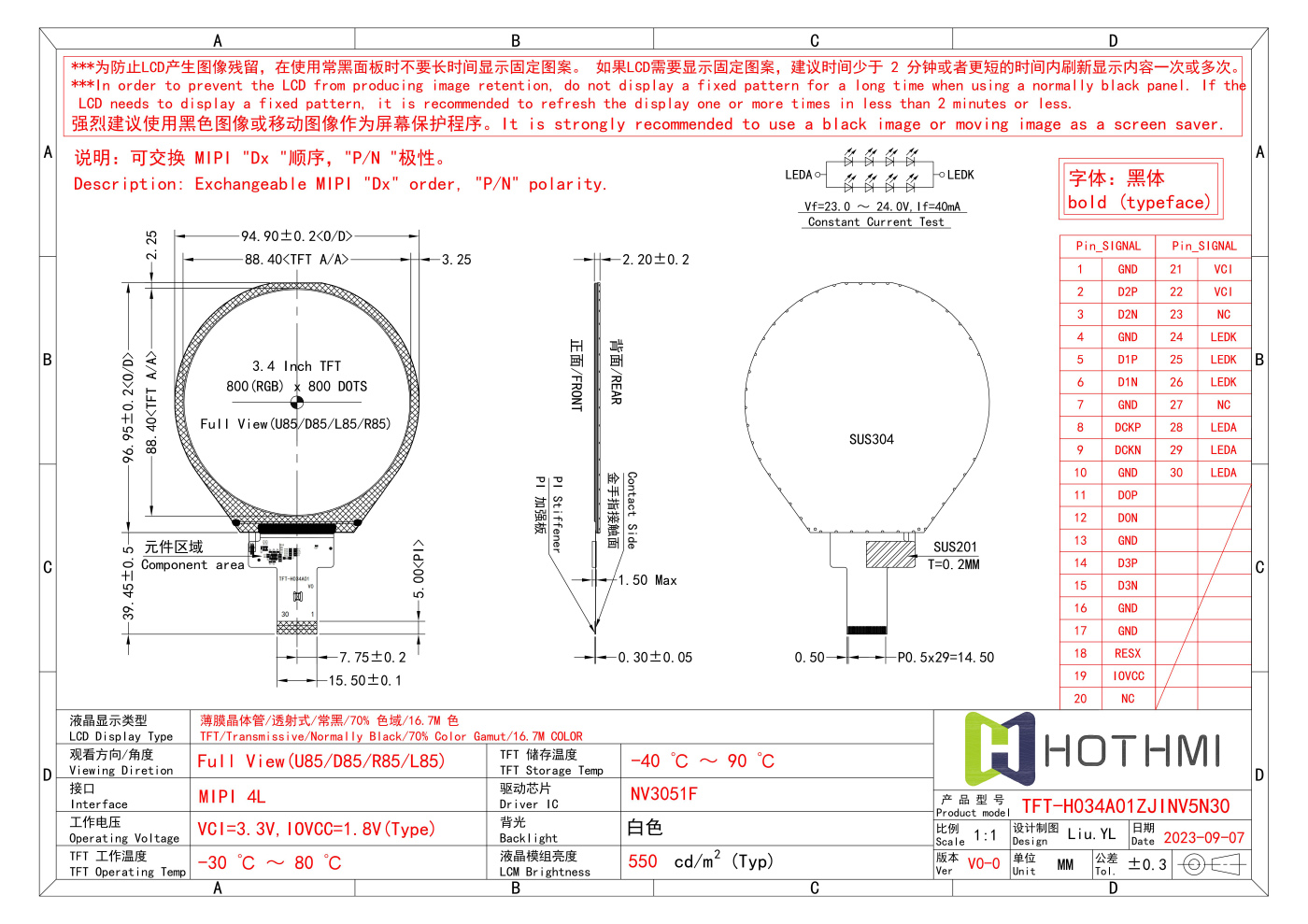

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H034A01ZJINV5N30
Diagonal size	3.4”	Inch
Resolution	800x800	Dot
Dimensions	94.9x96.95x2.2	mm
Active area (AA)	88.4x88.4	mm
LCD type	2.1” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：1
Backlight type	LED white
TFT driver IC	NV3051F
Brightness	550cd/M2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
