China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / 2.9"～4.9" TFT LCD Display Panels / 3.5" IPS TFT LCD Display With PCAP | 640x480 Resolution ST7703

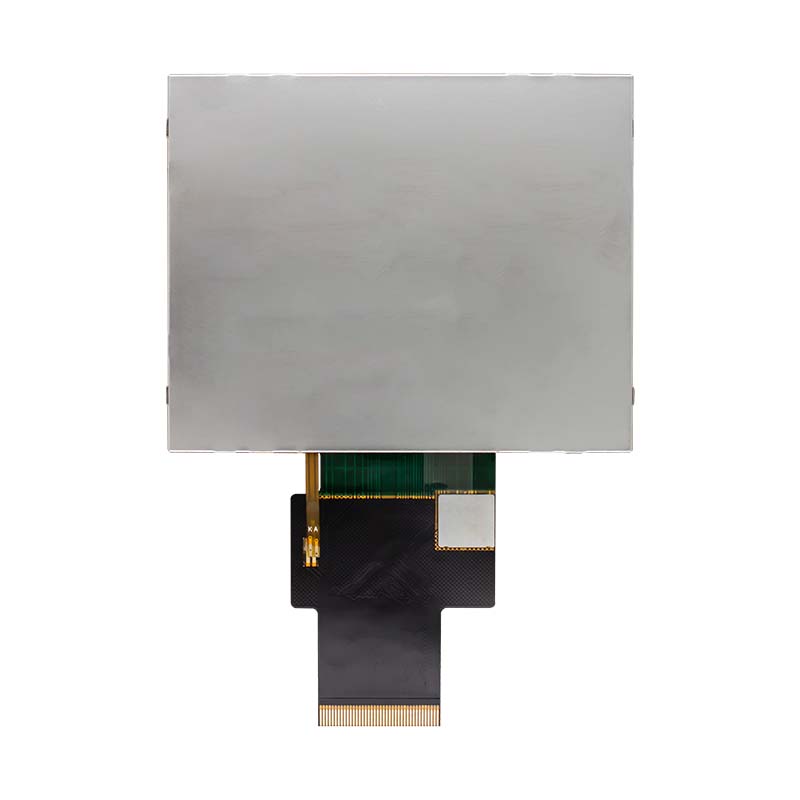

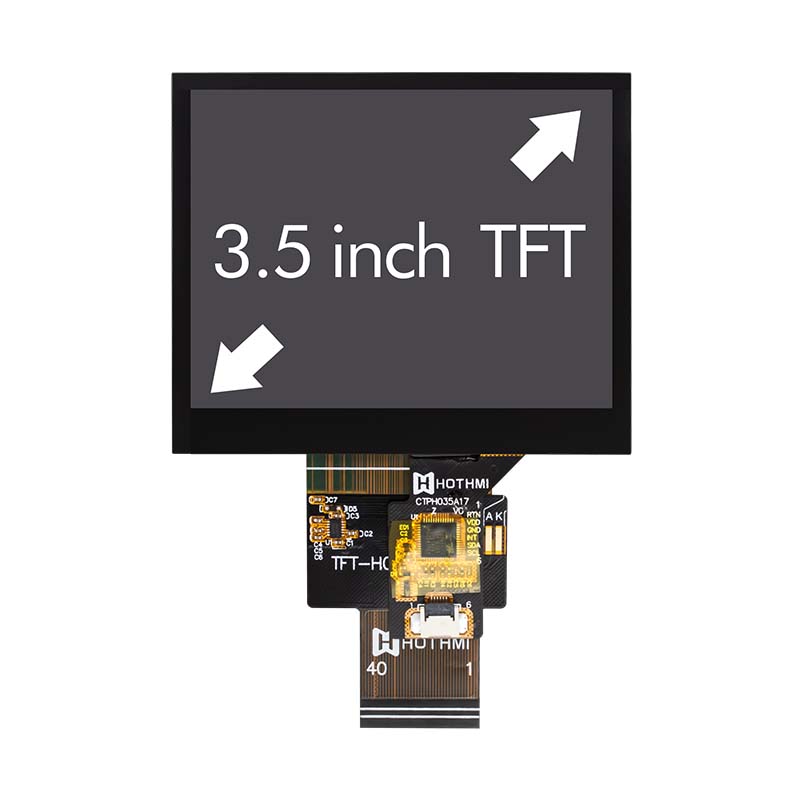

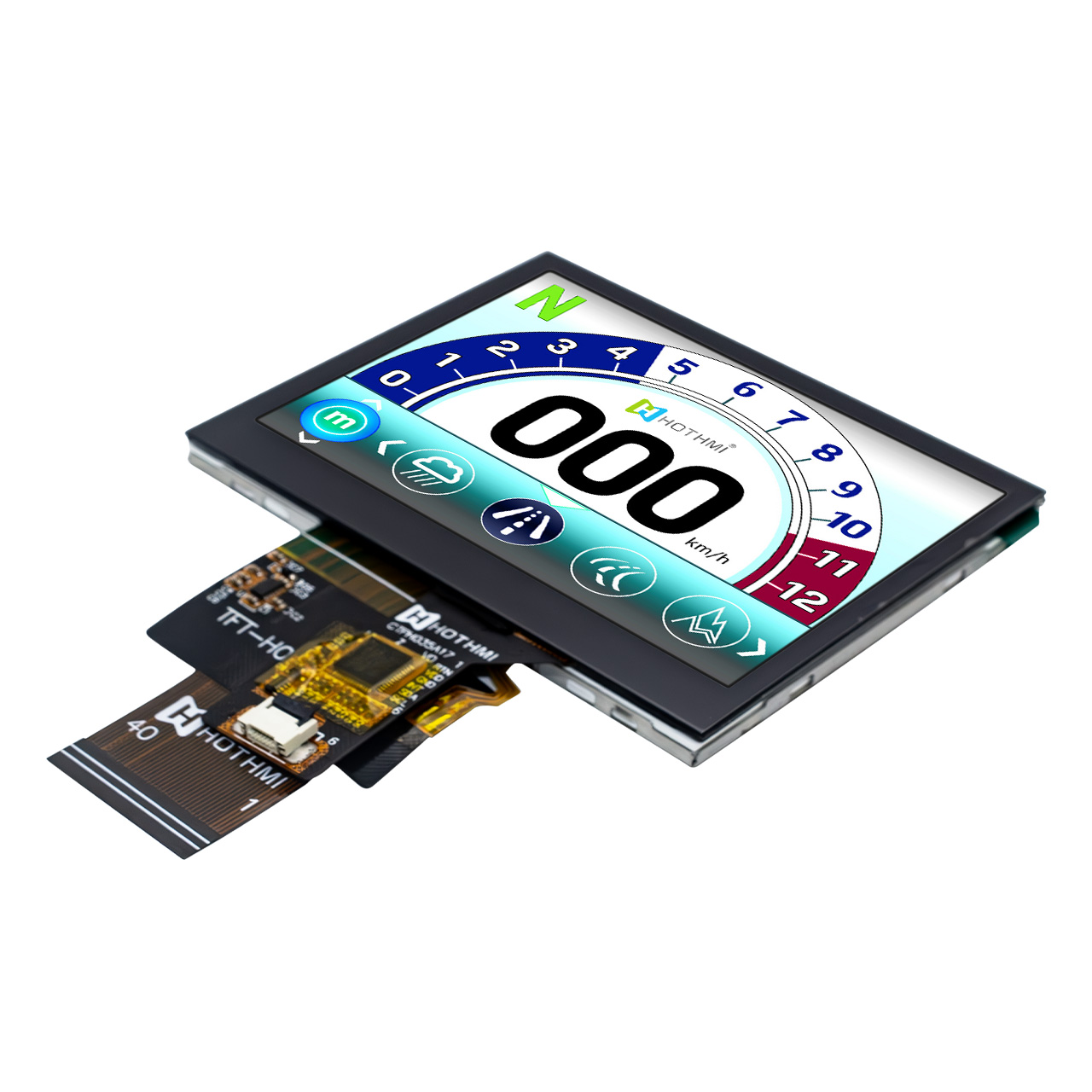

3.5" IPS TFT LCD Display With PCAP | 640x480 Resolution ST7703

? Model: TFT-H035A17VGINV5C40

? Type: 3.5 inch IPS TFT LCD Display
? Display pixels: 640x480 px

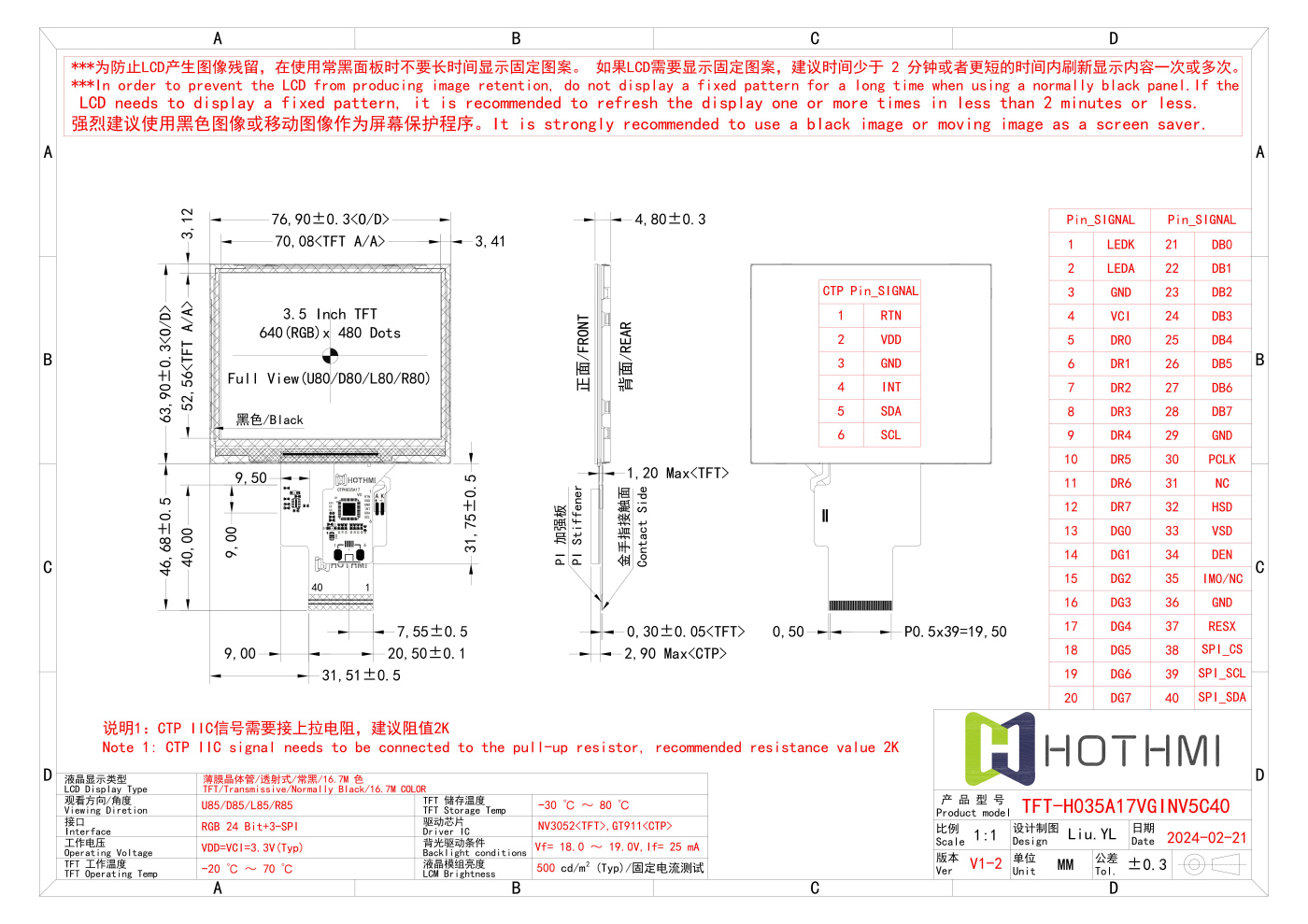

? Overall dimensions (Mm): 76.9x63.9x4.8
? Diagonal size: 3.5"
? AA size (Mm): 70.08x52.56
? Application: handheld instrumentation, industrial remote control
? Viewing angle: IPS full viewing angle
? Backlight/Brightness: 500cd/M2
? Pin: FPC-40PIN
? Interface mode: RGB
? Special instructions: Anti-static ESD 8KV
? Working temperature: -30~80℃
? Supply voltage: 3.3V
? Driver chip: NV3052,GT911

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)
USB data cable T-port charging data cable/serial screen/adapter board
JX Demo Board-RGB Specified Model Main Control Board
ESP32-S3 main control board / RGB designated display
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

TFT-H035A17VGINV5C40 | 3.5 inch IPS TFT LCD Display RGB Capacitive Touchscreen 640x480 Pixels ST7703
This 3.5 inch IPS TFT LCD Display has a high resolution of 640x480 pixels and has built-in EMI shielding. The TFT has an RGB interface and also includes a high-brightness LED backlight with a typical brightness level of 500 cd/m2. Thanks to the IPS technology built into this LCD monitor, the monitor offers stunning clarity, superior color reproduction, better image consistency, and high contrast ratio across all viewing angles. The ultra-bright backlight makes this TFT sunlight readable in bright conditions, including direct sunlight.
While this transmissive LCD boasts impressive quality and 3.3-volt power, it also includes a capacitive touch panel, making it an excellent choice for projects that require high-end visual output with 10-point multi-touch capability. The PCAP touch screen has a built-in I2C interface and GT911 controller. With its precise touch recognition and enhanced interactive application responsiveness, users can perform various gestures and interact more intuitively. This TFT display is powered by the built-in NV3052 driver IC and is compatible with the Raspberry Pi/STM32/RK series, providing excellent performance and reliability. This driver optimizes the monitor's functionality, ensuring smooth operation and accurate rendering of images and graphics. The LCD and touch screen use FFC (Flexible Flat Cable) connections to ensure easy electrical connection. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.

Quality Standards

At HOTLCD Display We Strive Every Day To Provide Our Customers With The Highest Quality Products. This Means Quality, Engineering, And Manufacturing Teams Are Aligned To Exceed Your Expectations.

Our Customers Should Expect Their Products To Meet Or Exceed The Following Standards:

All Products

Reliability Testing	Customers Can Expect All Production Parts To Meet Or Exceed Operational Requirements Over Temperature, Humidity, And Vibration.
Glass Cleanliness	Customers Can Expect Glass To Be Protected By Liners And Presented Mindful Of Cleanliness Standards. This Means Glass Will Be Clean Of Contaminants, Fingerprints, And Other Foreign Material.
Bezel Appearance	Bezels Will Be Uniformly Painted Free Of Foreign Materials And Distracting Cosmetic Blemishes. Our Standards Maintain A Clean Scratch-Free Surface.
PCB Appearance	PCB’s Are Delivered With Long-Term Reliability In Mind. Finishes Are Free Of Bubbles, Foreign Contaminants, And Meet All UL Fire Requirements. PCB Materials Will Always Be Delivered Within Industry Norms. PCB Edges Will Be Cleanly Cut And Void Of Burrs.
Soldering	Soldering Of All Leaded And SMT Components Is Consistent In Providing The Mechanical Security And Electrical Connectivity.
Consistency	Our Manufacturing And Inspection Processes Ensure Product Consistency From Lot To Lot. This Means Orders Processed Over The Years Will Continually Meet Your Expectations. We Do This By Exacting Manufacturing Specifications, With Attention To Detail In Our Processes, And By Comparing To The Golden Units.
Product Integrity	Quality In Product Manufacturing Ensures Integrity In Construction. Customers Can Expect Tight Assembly Without Worry Of Loose Parts Or Missing Material. Our Products Will Meet All Environmental Expectations Including Temp, Humidity, & Vibration Conditions.
Glass Color	While Normal Variations Of Glass Color May Occur (Due To Manufacturing Tolerances), Hotdisplay Display Maintains Color Compliance Per Internal Approved Color Charts. These Charts Are Maintained To Ensure Any Minor Glass Deviations Are Identified And Corrected As Needed.
ESD Protection & Safety	All Devices Are Designed And Handled In Consideration Of ESD Protection. This Includes ESD-SAFE Packaging Within Anti-Static Bags, Wraps, And Trays. Customers Are Reminded To Always Follow ESD Safety To Best Protect The Devices.
