HOME / Product / MCU 8080 TFT LCD Display Modules / 5 Inch TFT LCD Module Resistive Touchscreen For Arduino

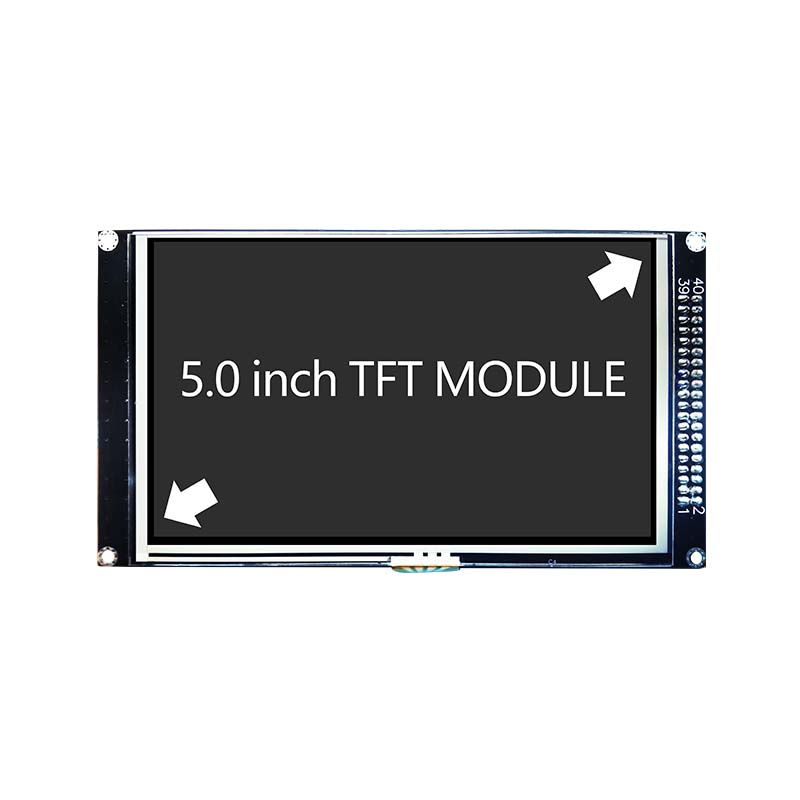

5 Inch TFT LCD Module Resistive Touchscreen For Arduino

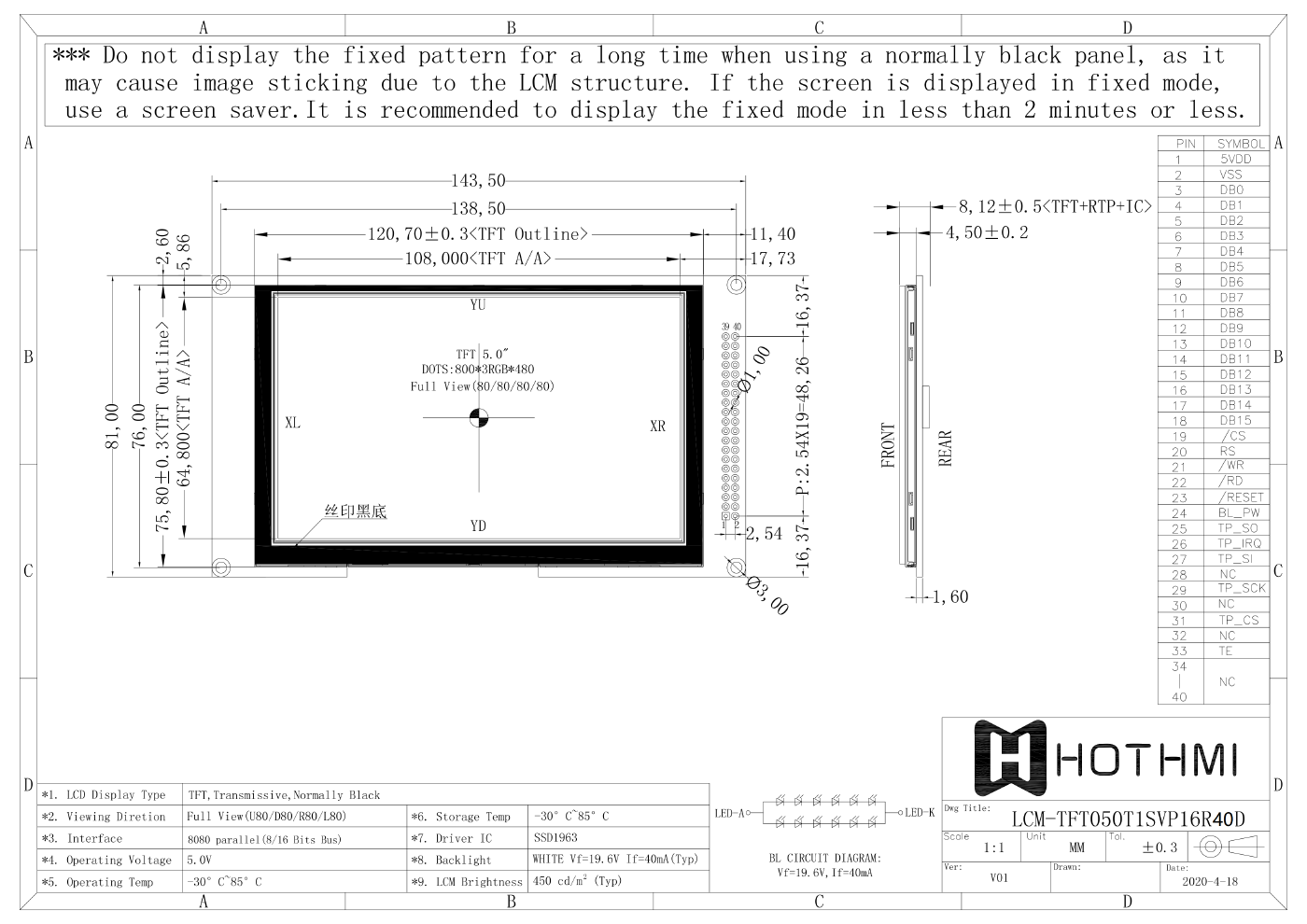

? Model: LCM-TFT050T1SVP16R40D

? Type: TFT module
? Display pixels: 800x480 Px
? Overall dimensions (mm): 143.5x81x8.12
? Display inches: 5.0"
? Effective size (mm): 108x64.8
? Application: Microcontroller/Arduino
? Viewing angle: IPS full viewing angle
? Brightness: 450cd/M2
? Pin: 40 PIN
? Interface: MCU
? Special instructions: Anti-static ESD 8KV
? Working temperature: -30~85℃
? Power supply voltage: 5.0V
? Driver chip: SSD1963

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

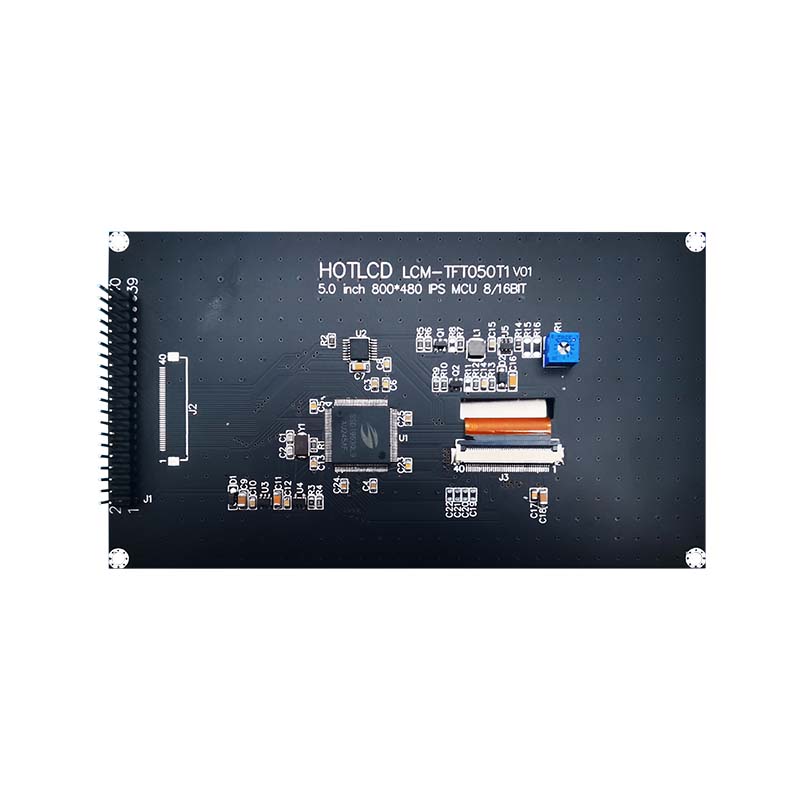

LCM-TFT050T1SVP16R40D | 5.0" LCD TFT bar module | 800x480 pixels | MCU interface | 40-pin FFC ZIF connection | With driver control board | Optional capacitive/resistive touch screen | Arduino display

This TFT module uses IPS full viewing angle technology to ensure clear and vivid image display at various viewing angles. The anti-static design provides 8KV ESD protection capability, effectively preventing static electricity from damaging the module.

The brightness is as high as 450cd/M2, making it perform well in various lighting conditions. The display pixels of 800x480 Px provide high-definition images, allowing users to experience detailed and clear visual effects. Equipped with 40 PIN pins and MCU interface for easy connection and control with various embedded systems. The application of driver chip SSD1963 ensures efficient and stable image processing and display performance. Whether in extreme temperature environments or under normal working conditions, the LCM-TFT050T1SVP16R40D performs well, and its operating temperature range (-30~85℃) ensures reliability in various application scenarios.

Overall, LCM-TFT050T1SVP16R40D is a high-performance TFT module tailored for embedded systems, providing excellent visual experience and reliability, and is an ideal choice for projects such as microcontrollers and Arduino. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections

Touchscreen Add-On Components:

Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design.

Interface Customization:

Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals.

Cover Glass:

Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris.

Quality Standards

At HOTLCD Display We Strive Every Day To Provide Our Customers With The Highest Quality Products. This Means Quality, Engineering, And Manufacturing Teams Are Aligned To Exceed Your Expectations.

Our Customers Should Expect Their Products To Meet Or Exceed The Following Standards:

All Products

Reliability Testing	Customers Can Expect All Production Parts To Meet Or Exceed Operational Requirements Over Temperature, Humidity, And Vibration.
Glass Cleanliness	Customers Can Expect Glass To Be Protected By Liners And Presented Mindful Of Cleanliness Standards. This Means Glass Will Be Clean Of Contaminants, Fingerprints, And Other Foreign Material.
Bezel Appearance	Bezels Will Be Uniformly Painted Free Of Foreign Materials And Distracting Cosmetic Blemishes. Our Standards Maintain A Clean Scratch-Free Surface.
PCB Appearance	PCB’s Are Delivered With Long-Term Reliability In Mind. Finishes Are Free Of Bubbles, Foreign Contaminants, And Meet All UL Fire Requirements. PCB Materials Will Always Be Delivered Within Industry Norms. PCB Edges Will Be Cleanly Cut And Void Of Burrs.
Soldering	Soldering Of All Leaded And SMT Components Is Consistent In Providing The Mechanical Security And Electrical Connectivity.
Consistency	Our Manufacturing And Inspection Processes Ensure Product Consistency From Lot To Lot. This Means Orders Processed Over The Years Will Continually Meet Your Expectations. We Do This By Exacting Manufacturing Specifications, With Attention To Detail In Our Processes, And By Comparing To The Golden Units.
Product Integrity	Quality In Product Manufacturing Ensures Integrity In Construction. Customers Can Expect Tight Assembly Without Worry Of Loose Parts Or Missing Material. Our Products Will Meet All Environmental Expectations Including Temp, Humidity, & Vibration Conditions.
Glass Color	While Normal Variations Of Glass Color May Occur (Due To Manufacturing Tolerances), Hotdisplay Display Maintains Color Compliance Per Internal Approved Color Charts. These Charts Are Maintained To Ensure Any Minor Glass Deviations Are Identified And Corrected As Needed.
ESD Protection & Safety	All Devices Are Designed And Handled In Consideration Of ESD Protection. This Includes ESD-SAFE Packaging Within Anti-Static Bags, Wraps, And Trays. Customers Are Reminded To Always Follow ESD Safety To Best Protect The Devices.
