China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / Character LCD Module |2X16 FSTN+ with White Backlight Display 5.0V-Arduino

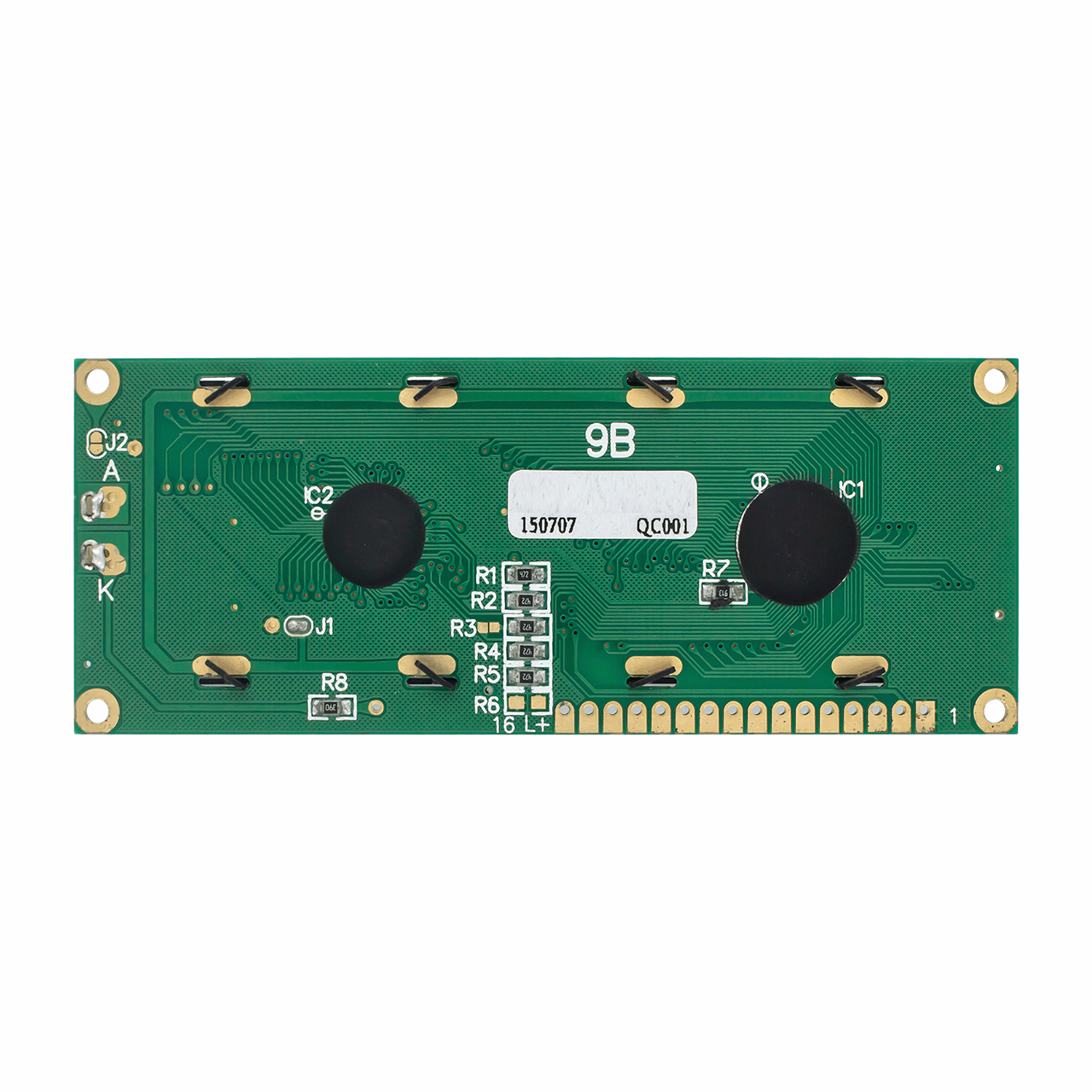

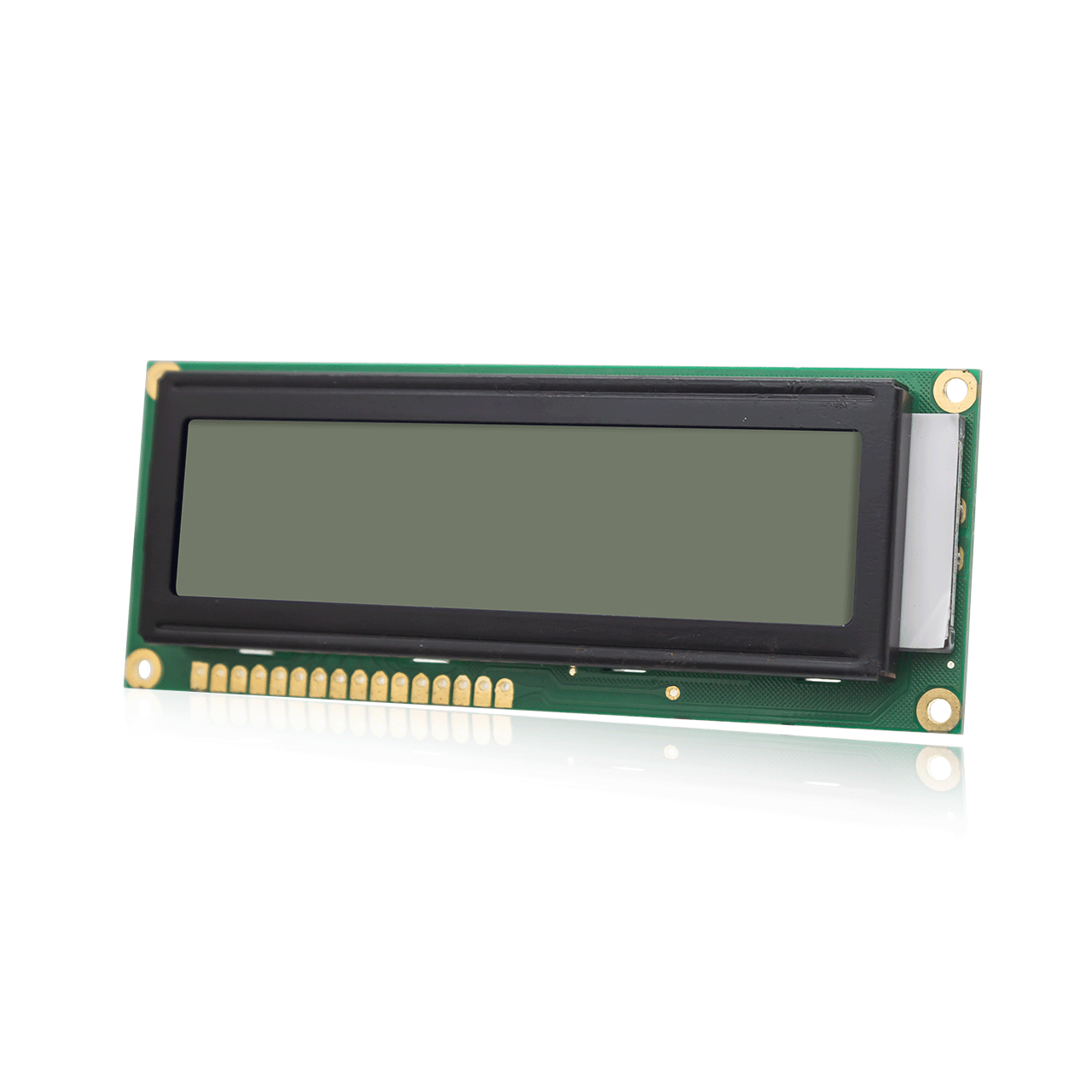

Character LCD Module |2X16 FSTN+ with White Backlight Display 5.0V-Arduino

? Model: HTM1602-9-31W-A5P

? Type: Character LCD Module
? Display content: 16x2 characters

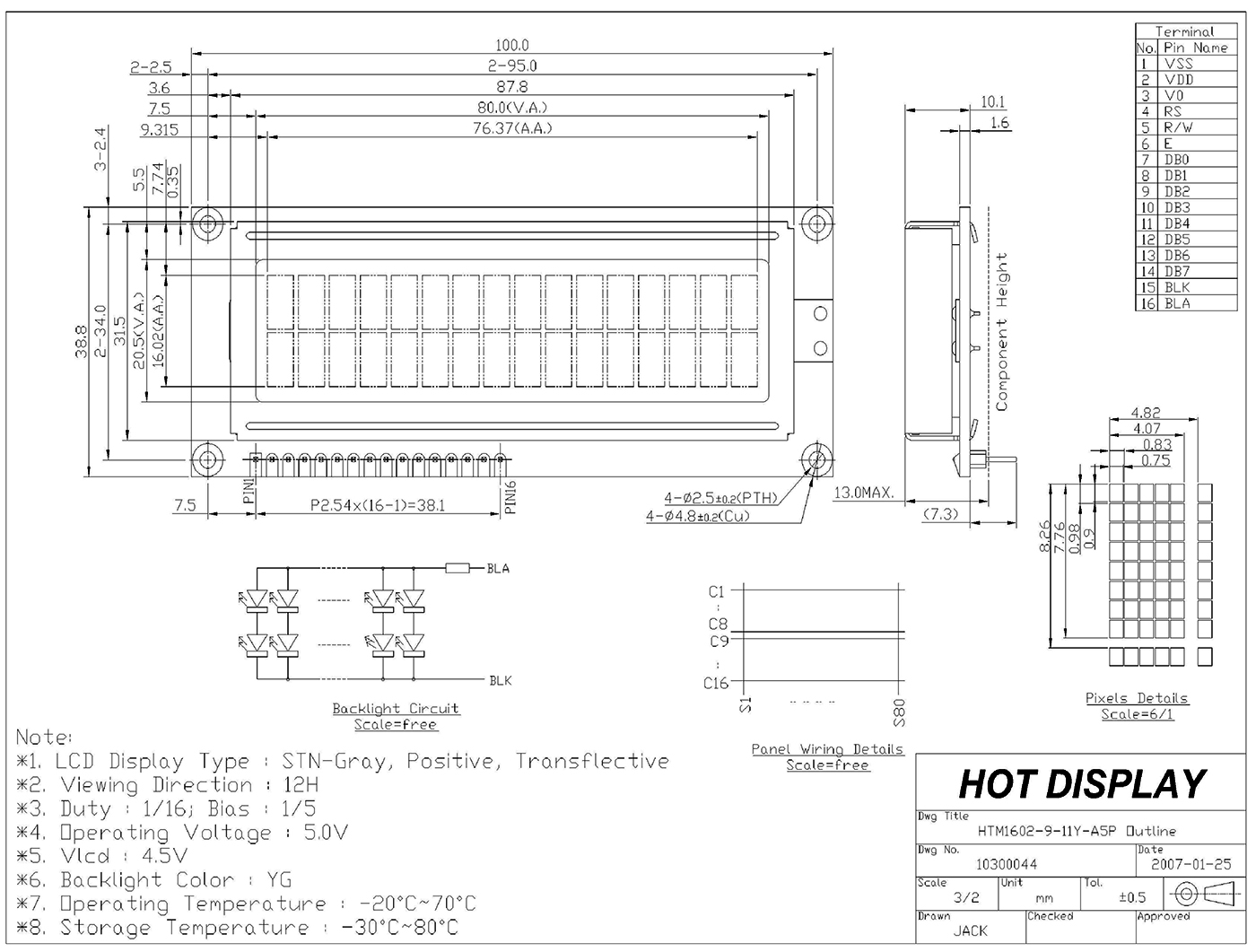

? Overall dimensions (mm): 100.0x38.0x13.0
? VA size (mm): 80.0x20.5
? AA size (mm): 76.37x16.02
? Point spacing mm: 0.83x0.98
? Product application: industrial equipment
? Viewing angle: 6H
? Backlight type: white light
? Number of connection PINs: 16PIN
? Interface mode: MCU/8bit
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Module |2X16 FSTN+ with White Backlight Display 5.0V-Arduino

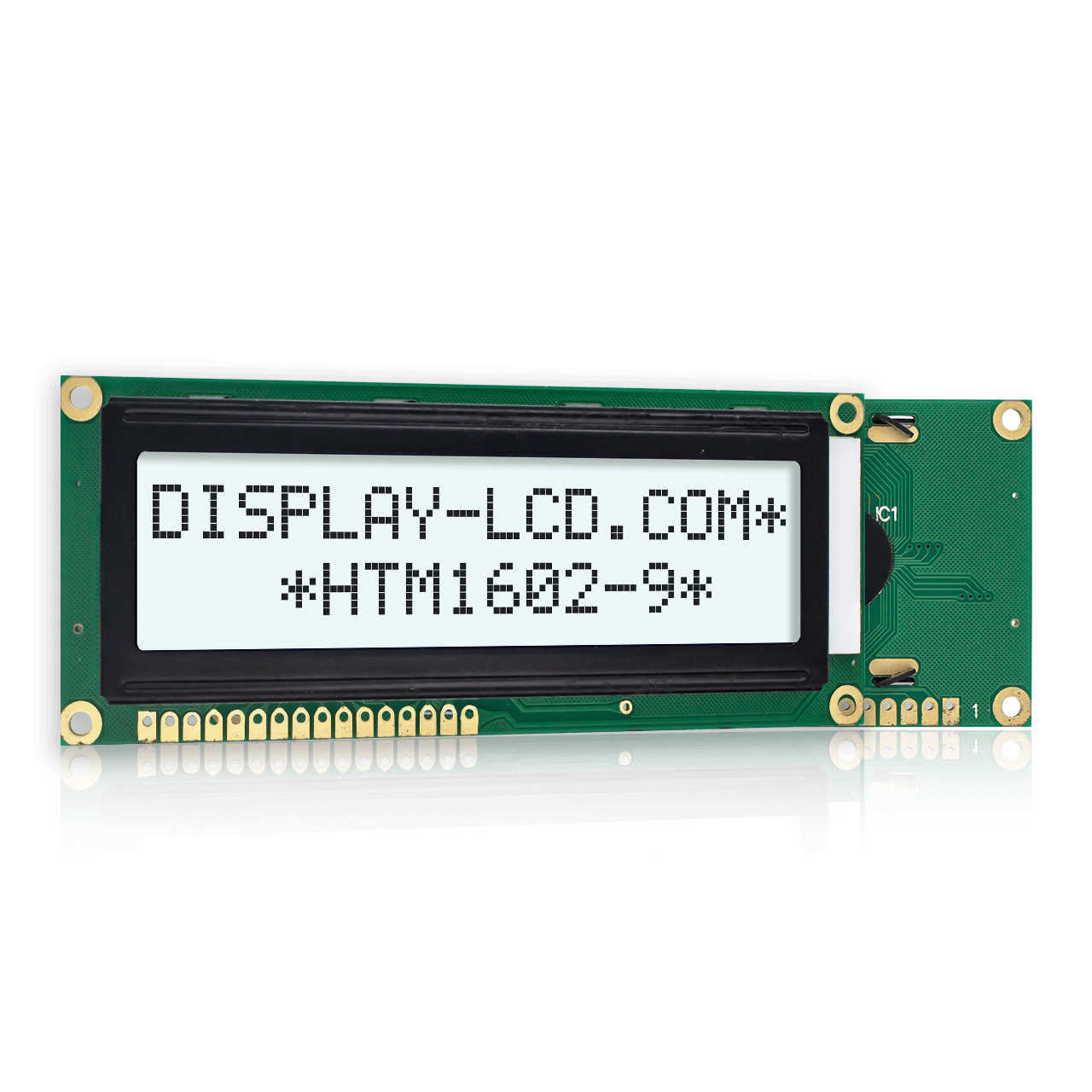

Character LCD Module features a 16-character, 2 lines display screen panel that shows dark pixel characters against a light grey background. This transflective LCD Display is visible with ambient light or in low light conditions using the added white LED backlight. This high-contrast FSTN LCD display operates in a wide temperature range with a 5.0V supply voltage. The optimal 6:00 o'clock view ensures the display is visible from different angles. It comes with a temperature compensation circuit and a built-in ST7066U controller. The 4-bit or 8-bit parallel communication makes it super simple to get started with the most popular development boards, including Arduino.

project	Parameter Description	unit
Model	HTM-1602-9-31W-A5P
Word x line	16 words x 2 lines	dots
Module Size	100x42x13.0 (MAX)	mm
Visible (VA) area	80.0X20.5	mm
Effective (AA) area	76.37 (W) x 16.02 (H)	mm
Point (Pixel) Size	0.75 x 0.90	mm
Point (pixel) spacing	0.83 x 0.98	mm
IC	ST7066U
supply voltage	5V	V
Backlight	White LED
mode	FSTN+gray
Duty driving mode	1/16 duty cycle
type	Character LCD module
characteristic	Semi transparent reflective polarizer
