China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Graphic LCD Modules / 3.2"128X64 monochrome graphic LCD module | with white backlight | FSTN(+) | MCU interface | Arduino

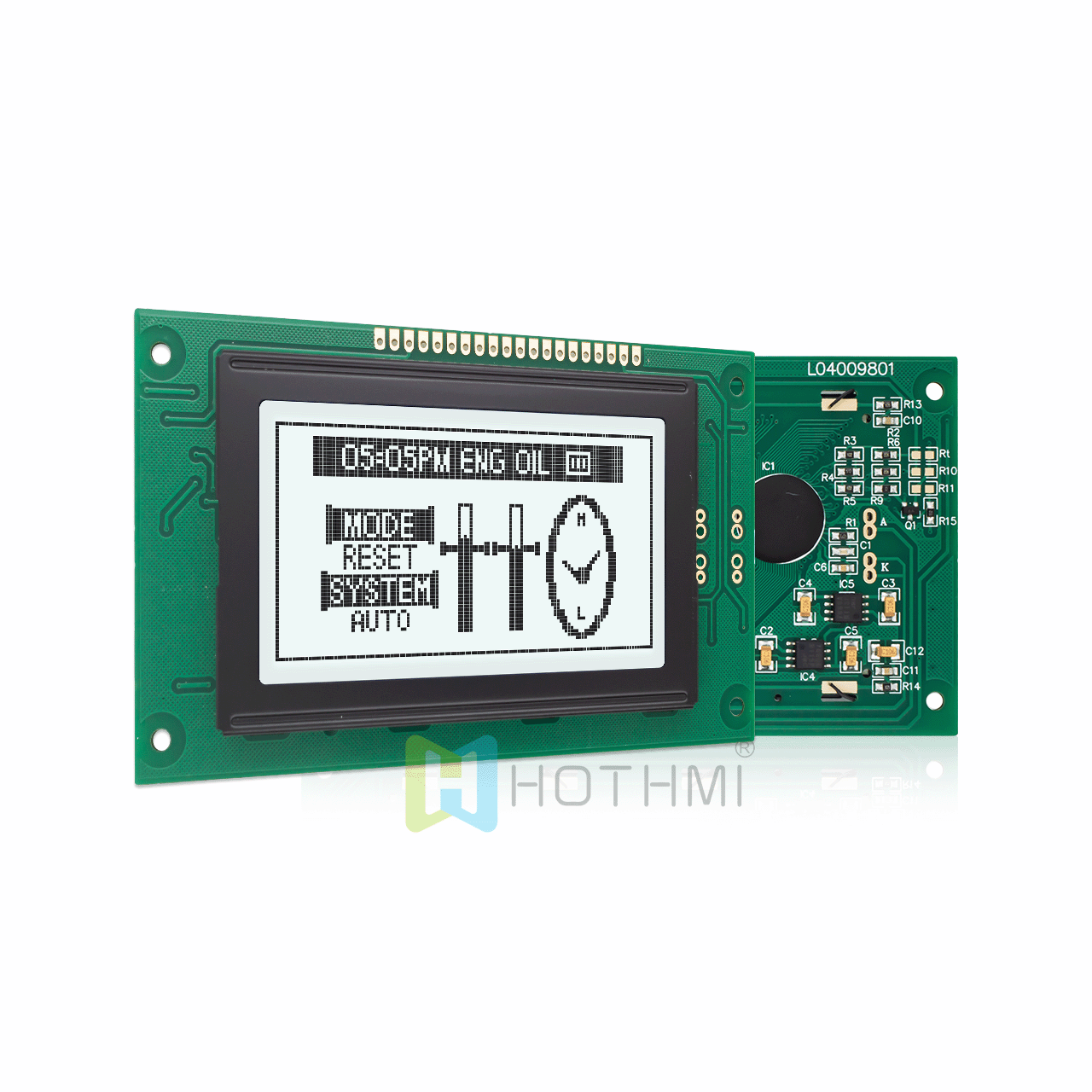

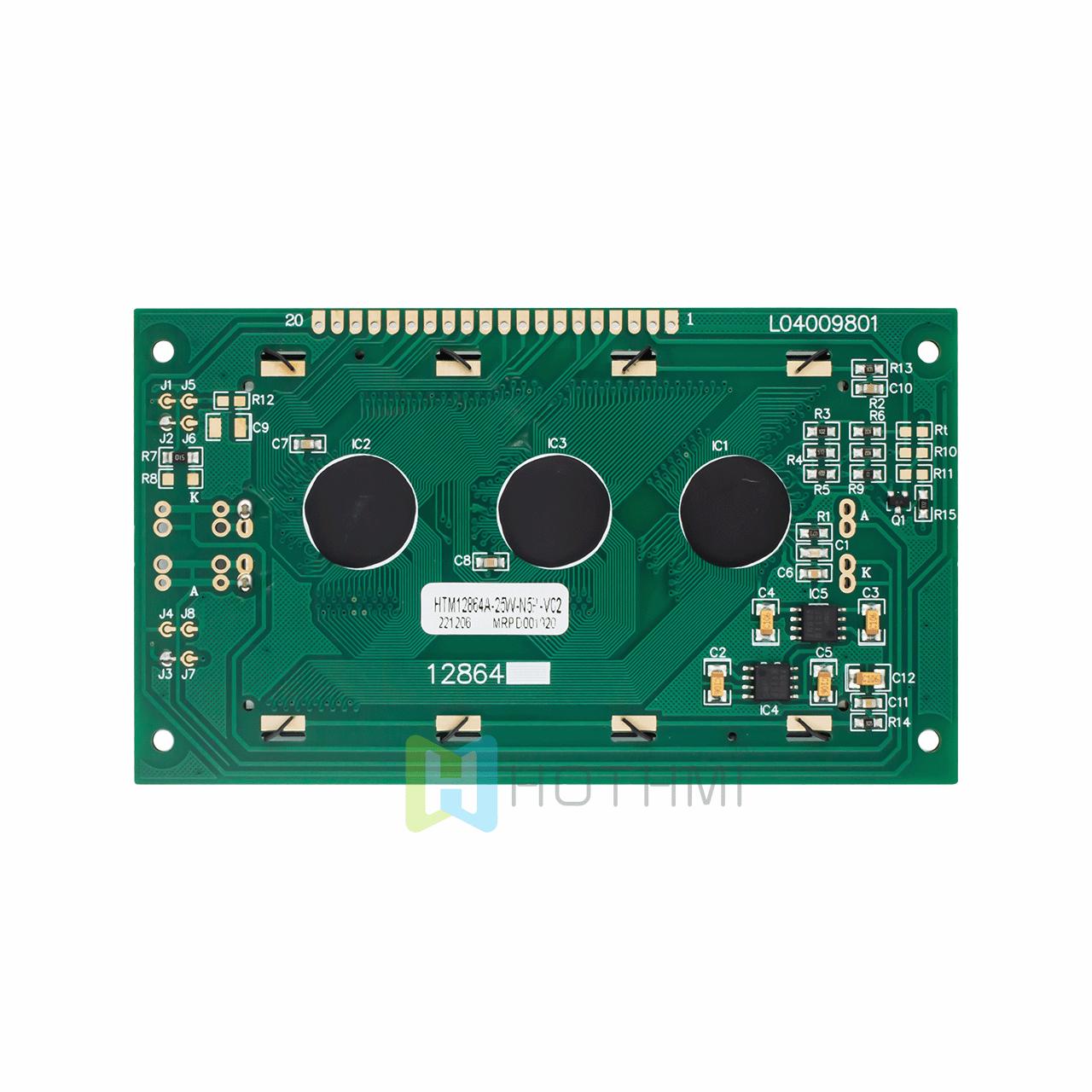

3.2"128X64 monochrome graphic LCD module | with white backlight | FSTN(+) | MCU interface | Arduino

? Model: HTM12864A-31W

? Type: Standard COB LCD module
? Display pixels: 128x64

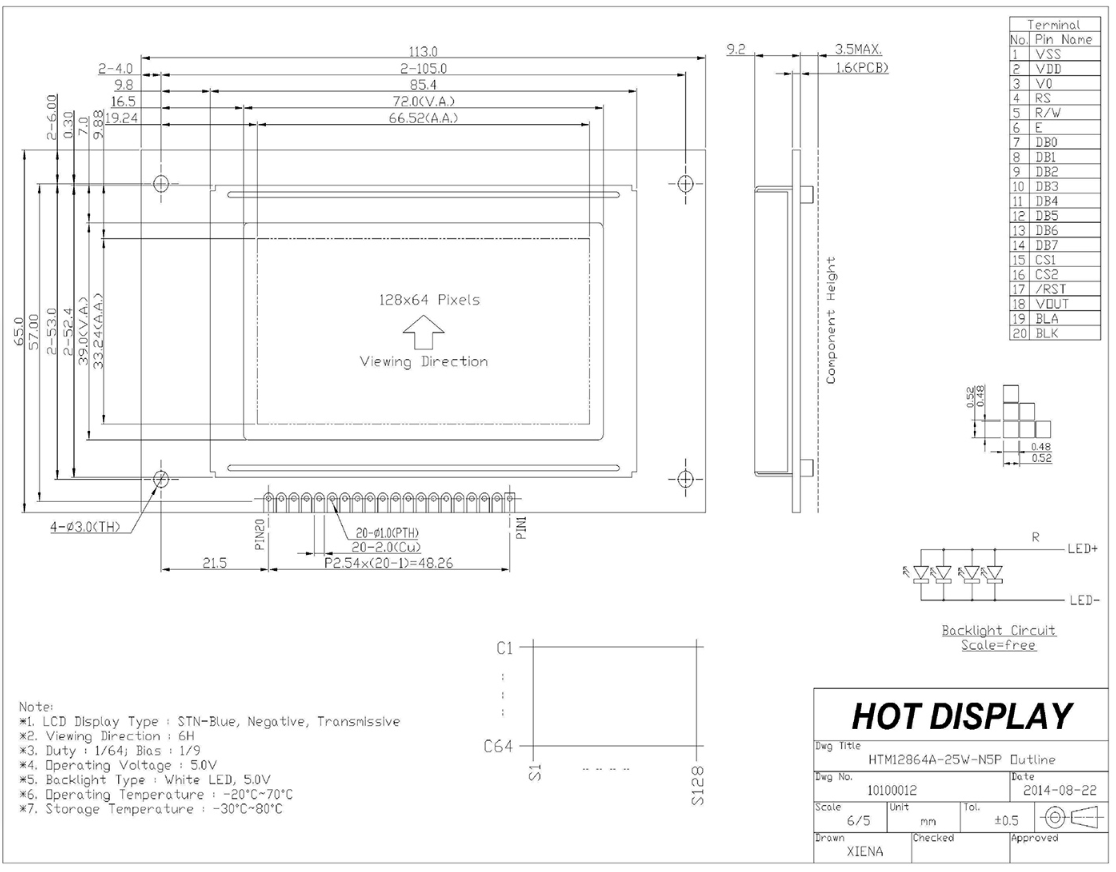

? Dimensions (mm): 113.0x65.0x12.7
? VA size (mm): 72.0x39.5
? AA size (mm): 66.52x33.24
? Pixel pitch (mm): 0.52x0.52
? Application: Industrial control
? Viewing angle: 6H
? Backlight/brightness: white light
? Pin: 20PIN
? Interface: MCU
? Special instructions: Anti-static ESD 8KV
? Operating temperature: -20~70℃
? Supply voltage: 5.0v
? Driver chip: KS0108 +KS0107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

HTM12864A-31W-A5P | 5.0v | 128X64 Monochrome Graphic LCD Module | With White Backlight | FSTN(+) | MCU Interface | Arduino

This Hot Dispaly 128x64 Graphic LCD Display Module displays gray pixels on a white background. This transmissive LCD display has been carefully designed to provide optimal visibility and impressive colors when used in darker environments. The display has a strong built-in backlight to provide high contrast and ensure readability of all graphics on the screen. Equipped with a 2x10 pin header soldered on the display, this graphic LCD display module is fully compatible with Arduino, allowing simple and seamless connection with other electronic systems for a variety of applications. The HTM12864A-31W-A5P model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 5V and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

parameter	Specifications	Unit
Name	HTM12864A-31W-A5P
Graphics display	128 column× 64 rows	dots
Dimensions	113.0x 65.0 x 12.7 (MAX)	mm
VA size	72.0 x 39.5	mm
AA size	66.52 x 33.24	mm
Pixel pitch	0.52 x 0.52	mm
Driver chip	KS107+KS108or compatible
Applied voltage	5V	V
Backlight illumination	white、
Display mode	FSTN(+)
Drive mode	1/64 duty cycle
Product type	Graphic LCD Module
Polarizer type	Semi-transparent
