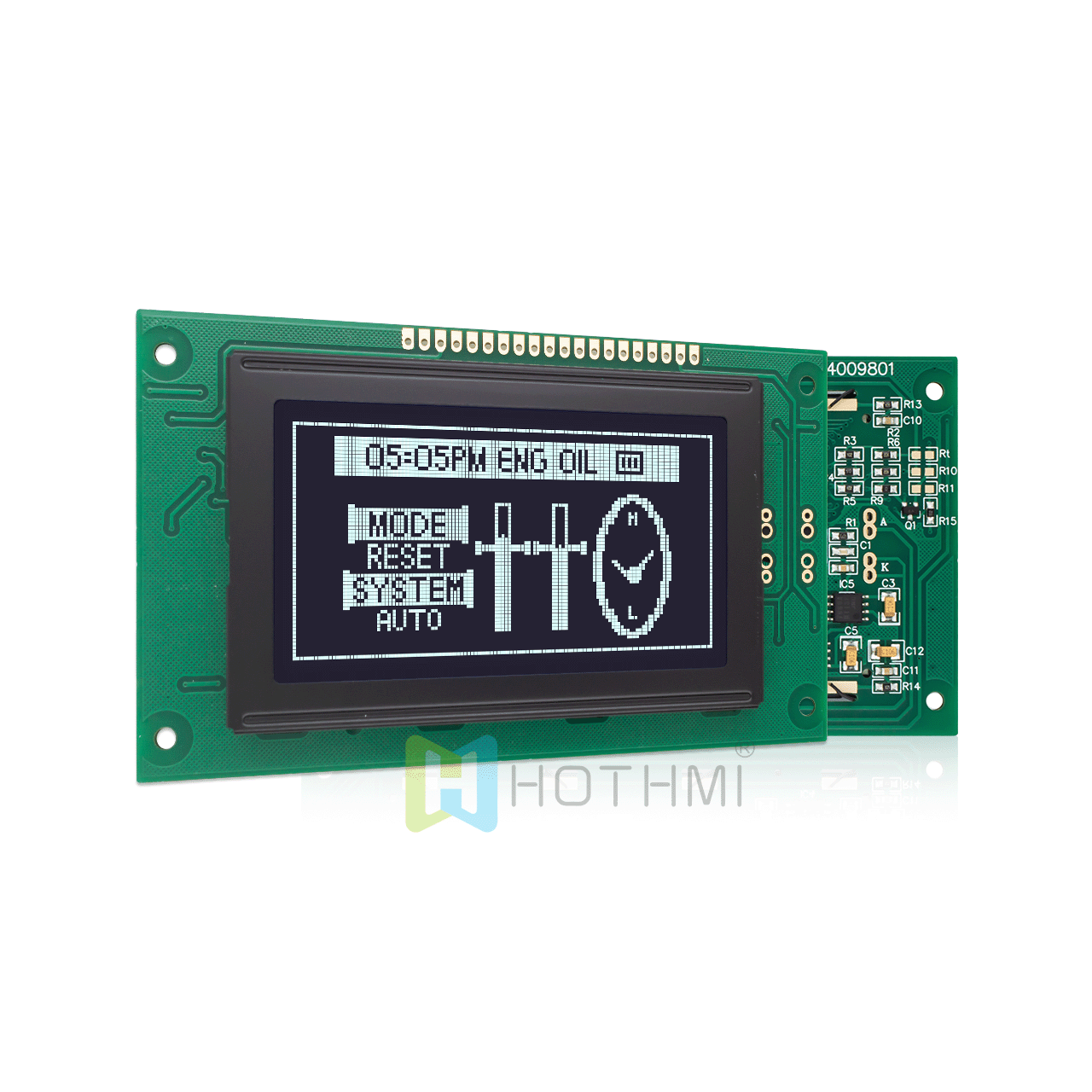

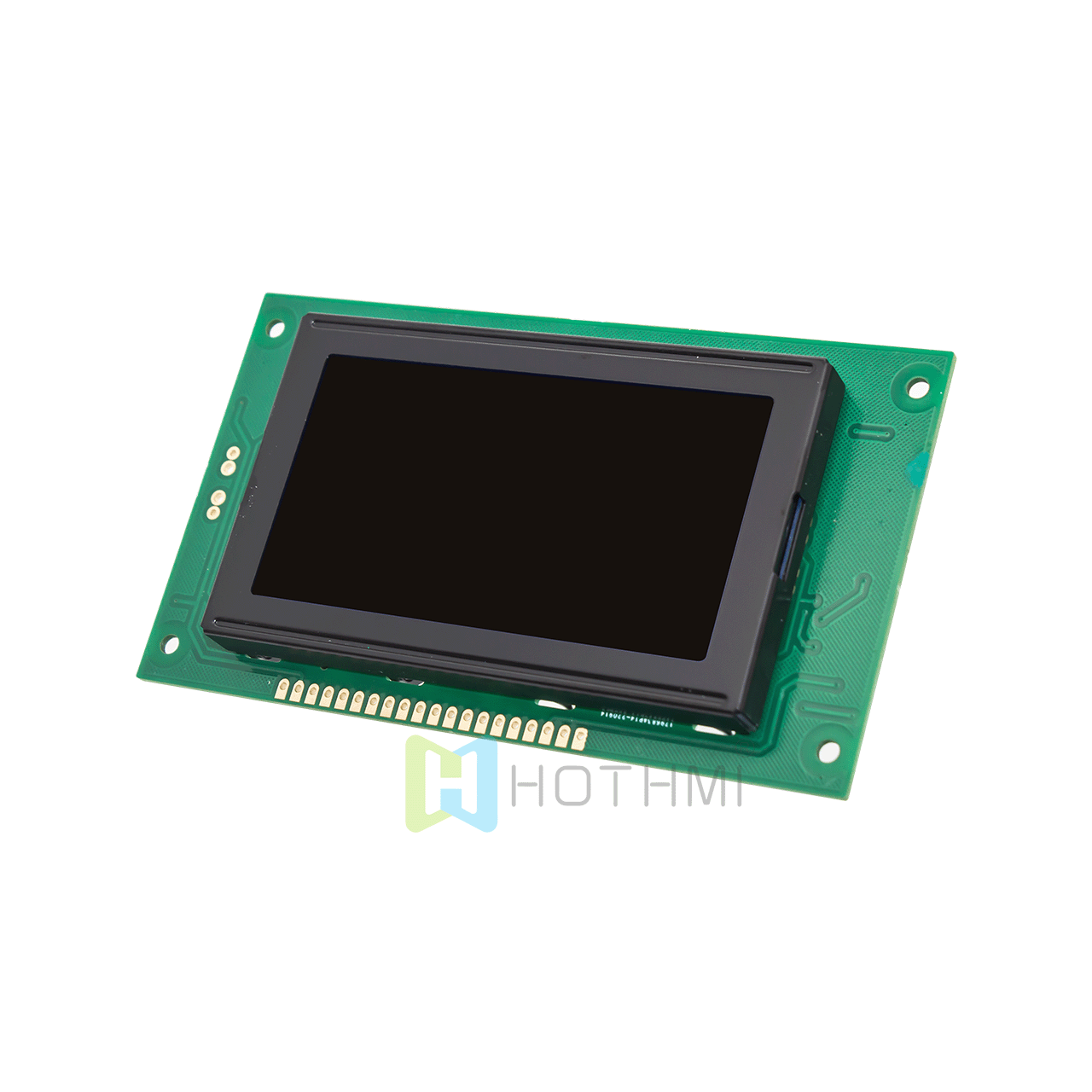

128X64 Monochrome Graphic LCD Module | With White Backlight | DFSTN(-) | MCU Interface | Arduino | White Graphics on Black | KS0107+KS0108 or Compatible
This Hot Display Graphic LCD Display Module displays white pixels on a black background. This translucent LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. The LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions. This Graphic LCD Display Module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. The HTM12864A-47W-A5P model is designed to withstand harsh operating conditions and operates well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates on a 5V supply voltage, and is RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
