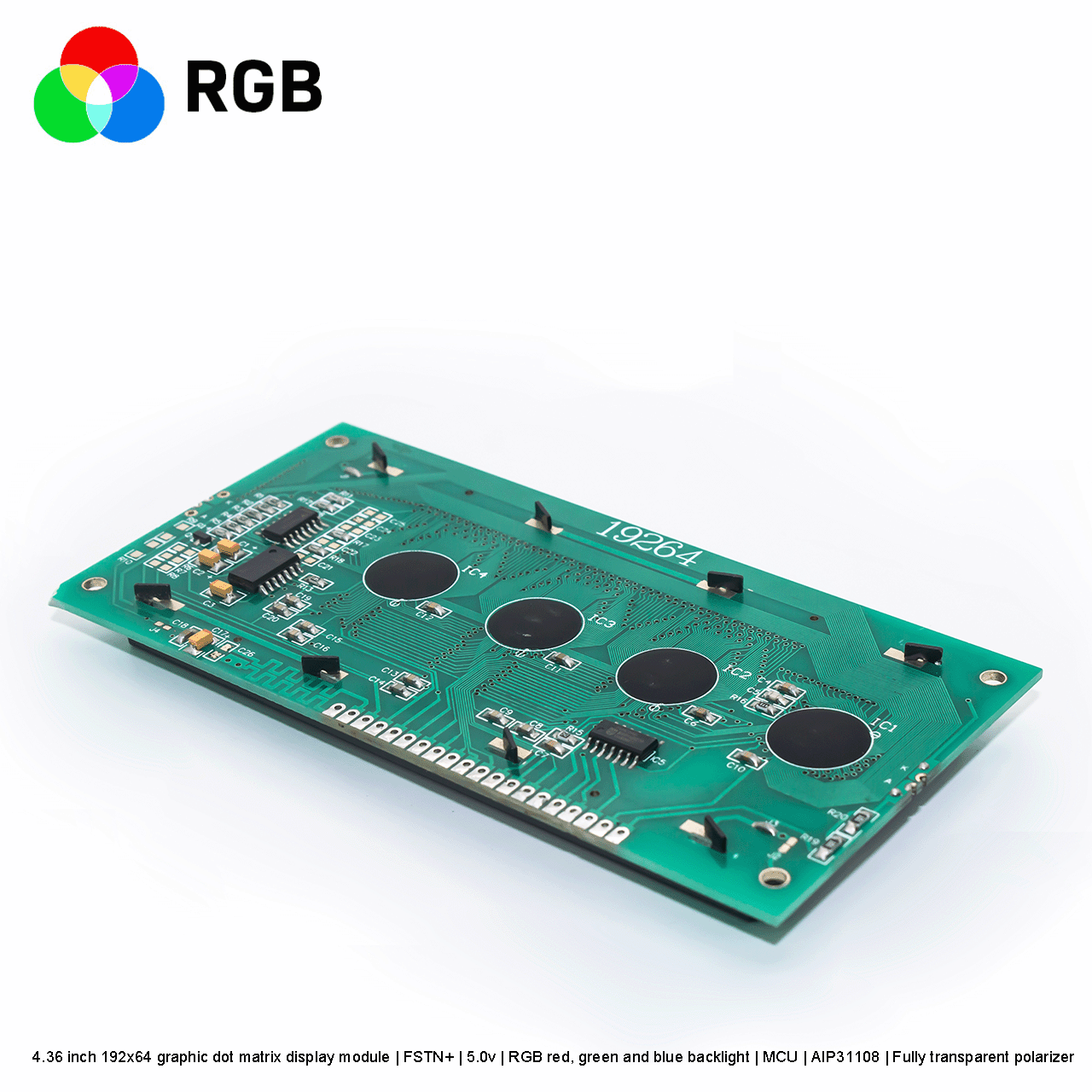

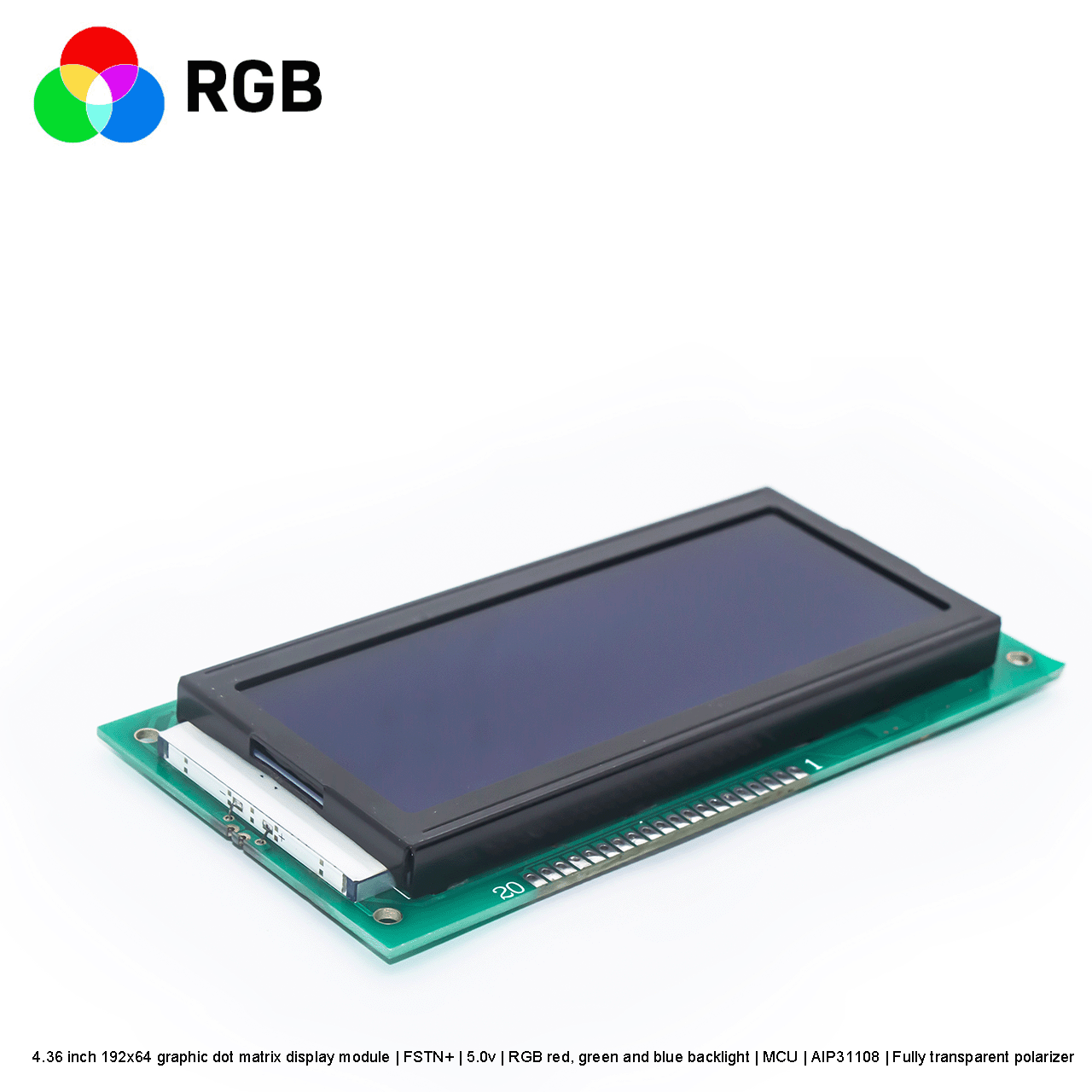

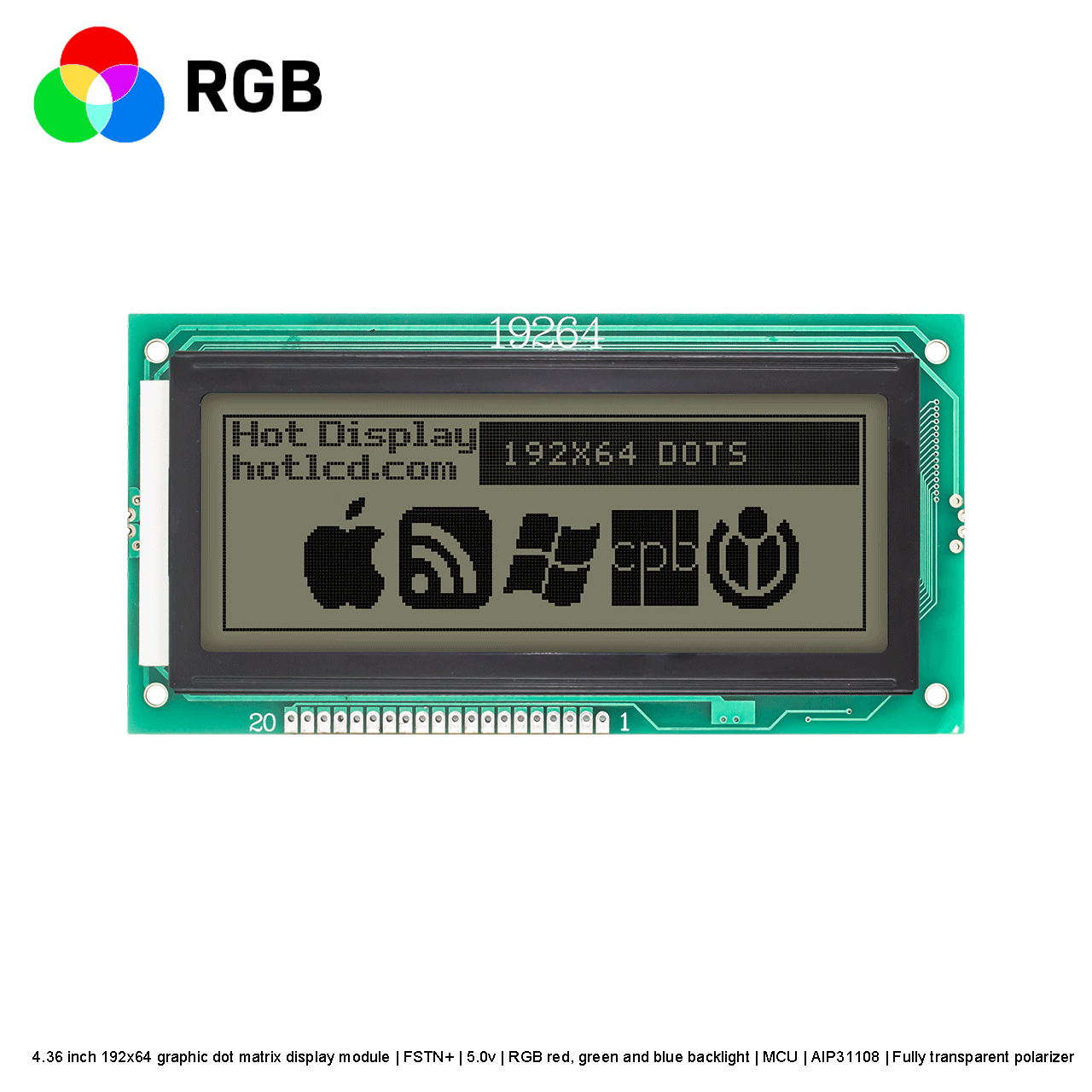

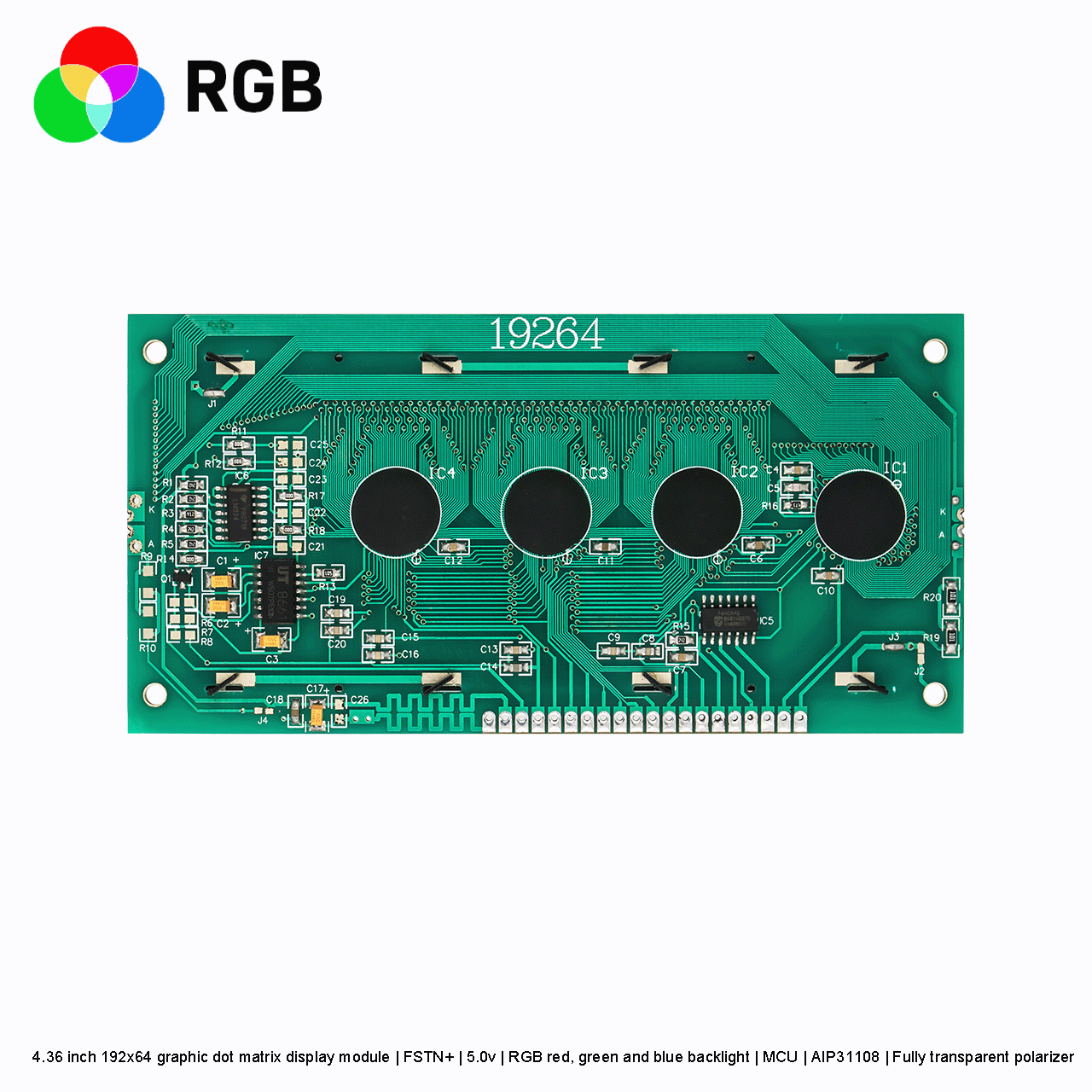

4.36 inch 192x64 graphic dot matrix display module | FSTN+ | 5.0v | RGB red, green and blue backlight | MCU | AIP31108 | Fully transparent polarizer
The 4.36 inch 192x64 graphic dot matrix display module displays dark gray pixels on a red, green and blue background. This fully transparent LCD display is carefully designed to allow the backlight to pass through completely, making the display content bright and clear, providing high contrast and ensuring readability of all graphics on the screen.
This graphic LCD display module is created with a built-in negative voltage and comes with a special backlight connector. It is also fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates on a 5V supply voltage, and is RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
