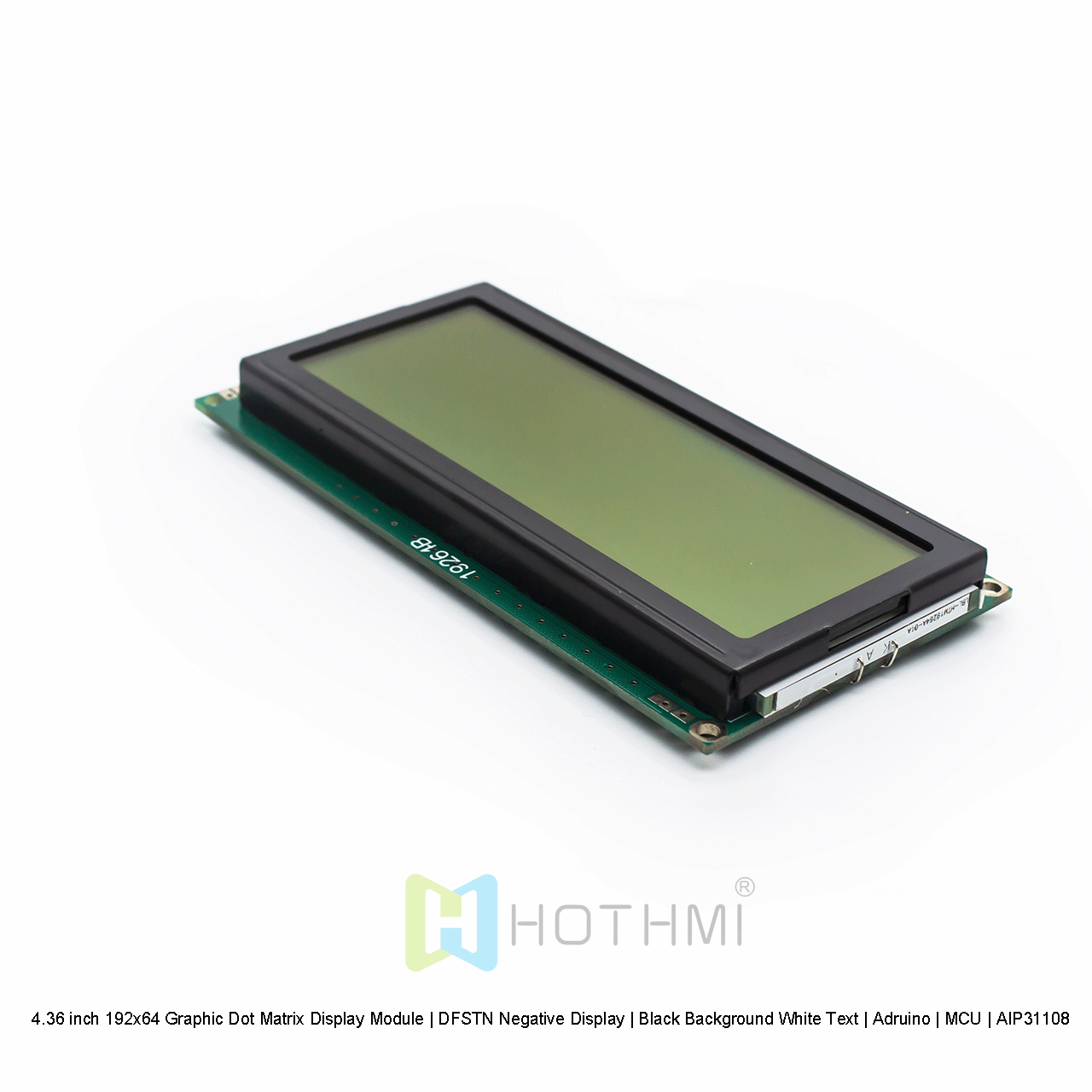

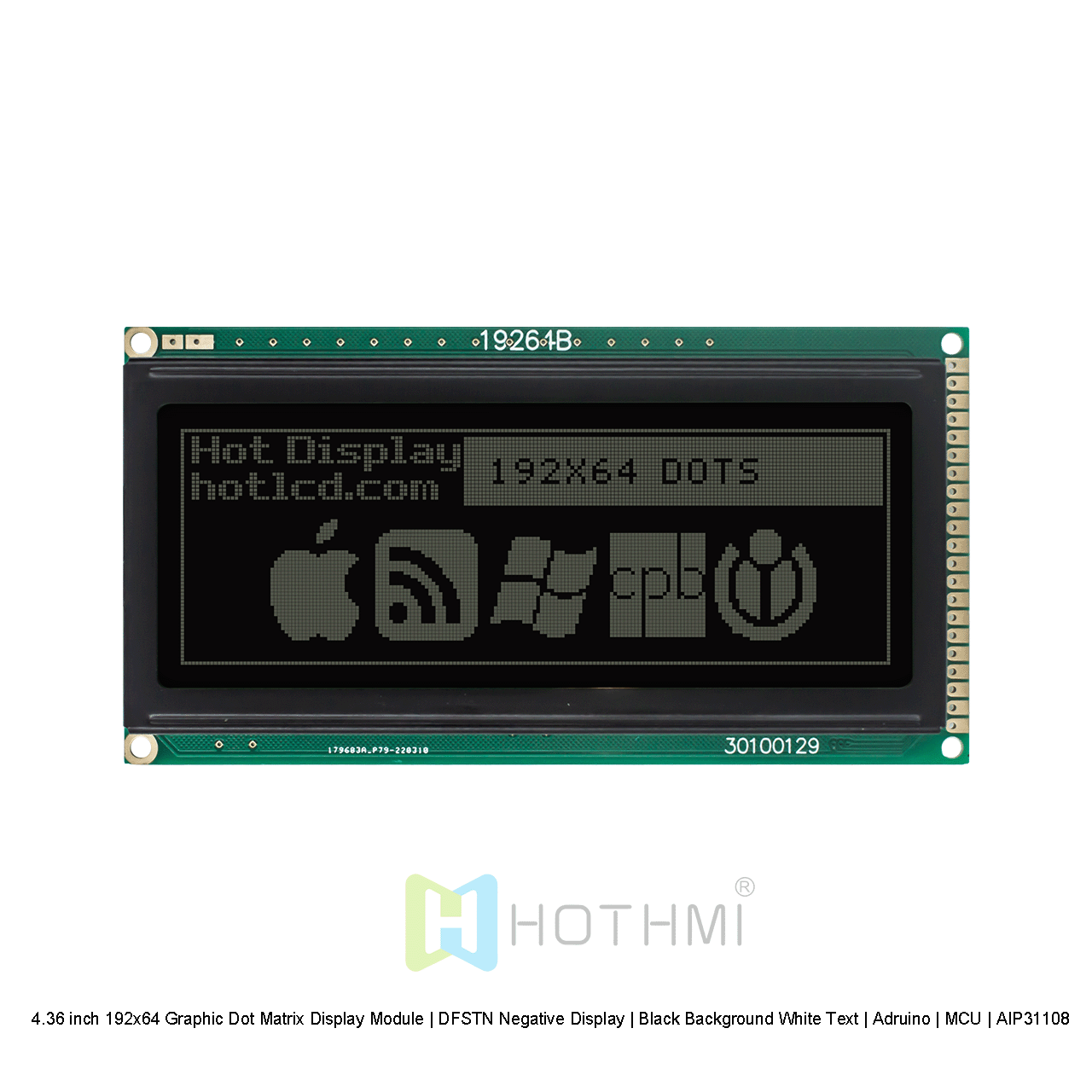

4.36 inch 192x64 Graphic Dot Matrix Display Module | DFSTN Negative Display | Black Background White Text | Arduino | MCU | AIP31108
The 4.36 inch 192x64 Graphic Dot Matrix Display Module displays deep white pixels on a black background. This transflective LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh operating conditions and performs well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 12:00, operates on a 5V supply voltage, and is RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

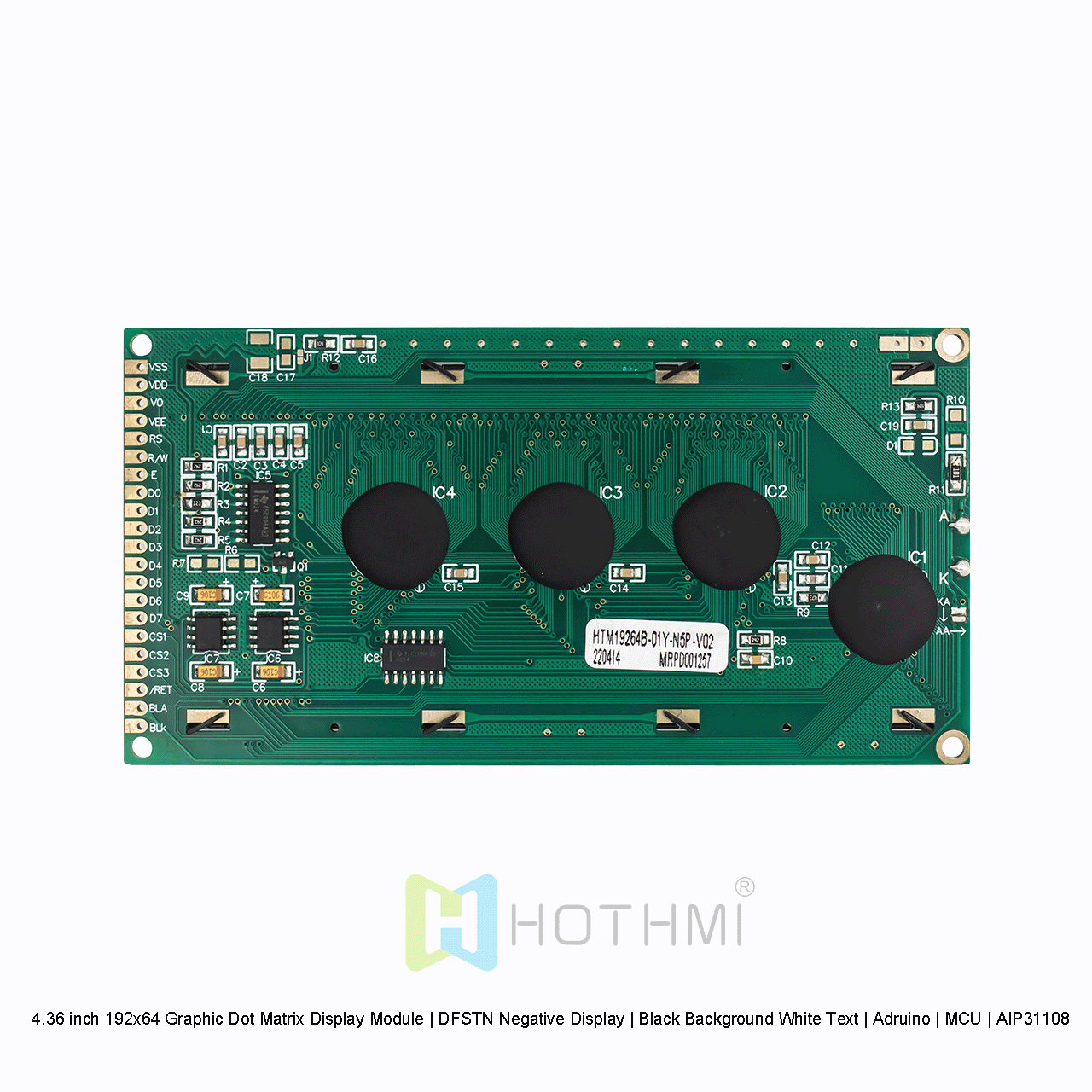

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
