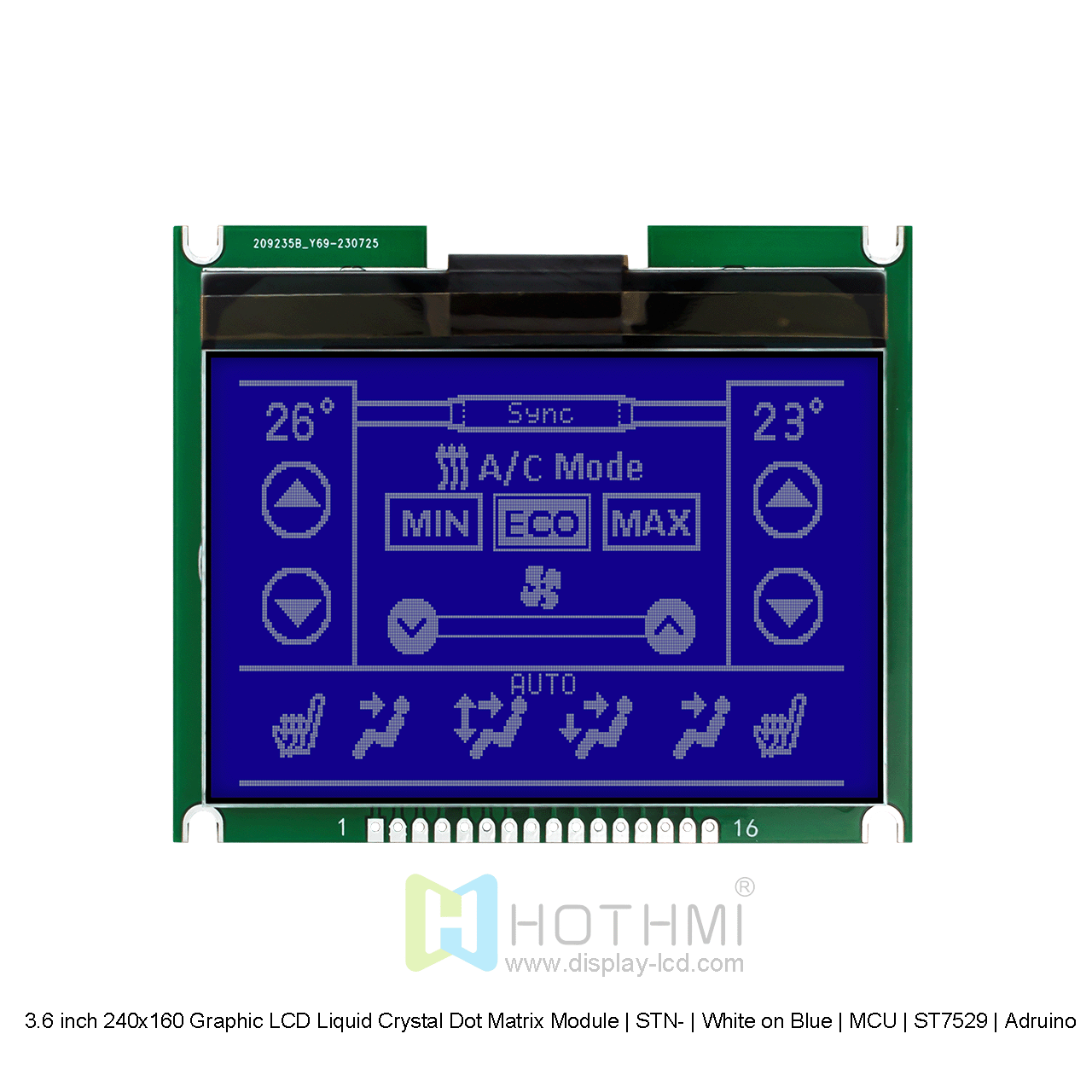

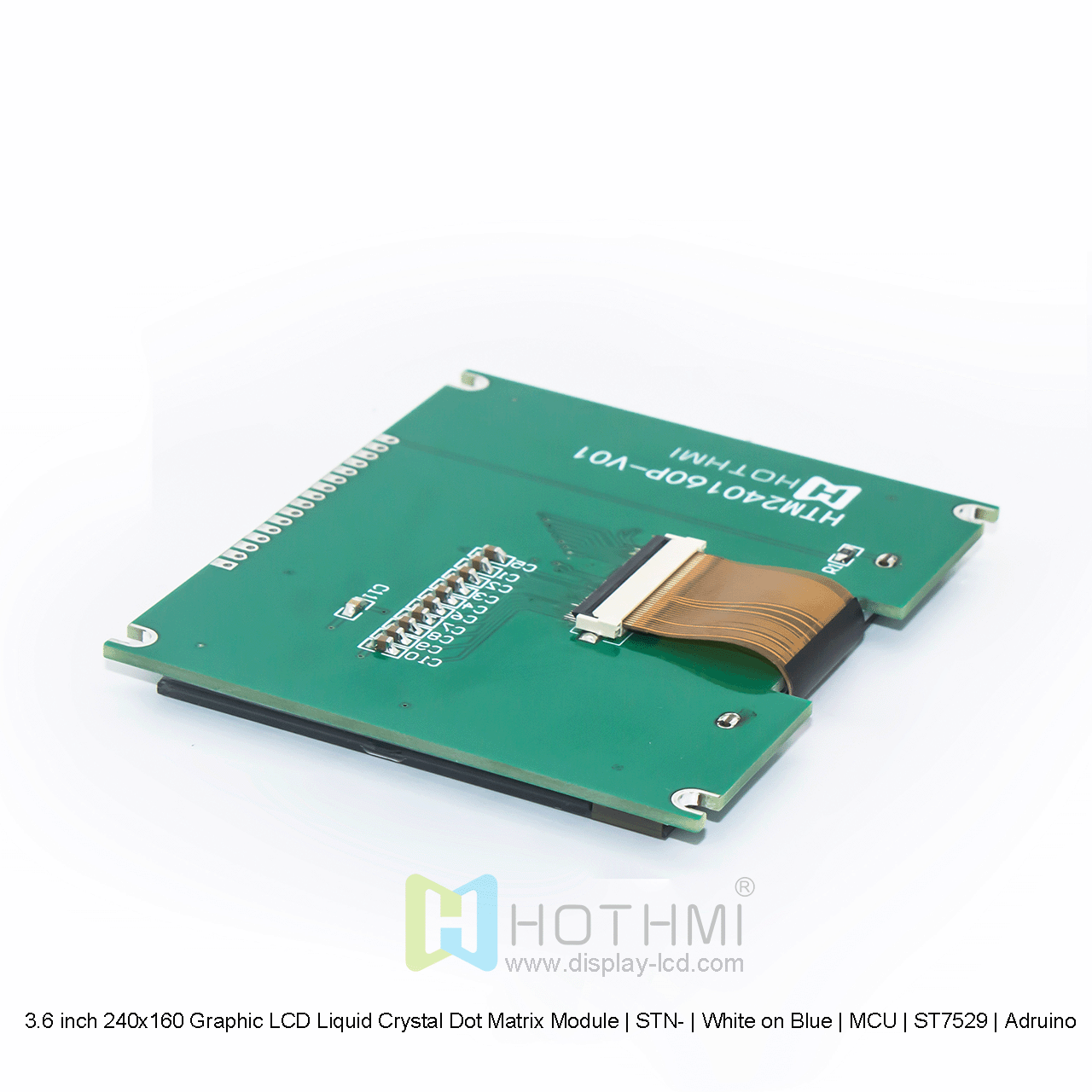

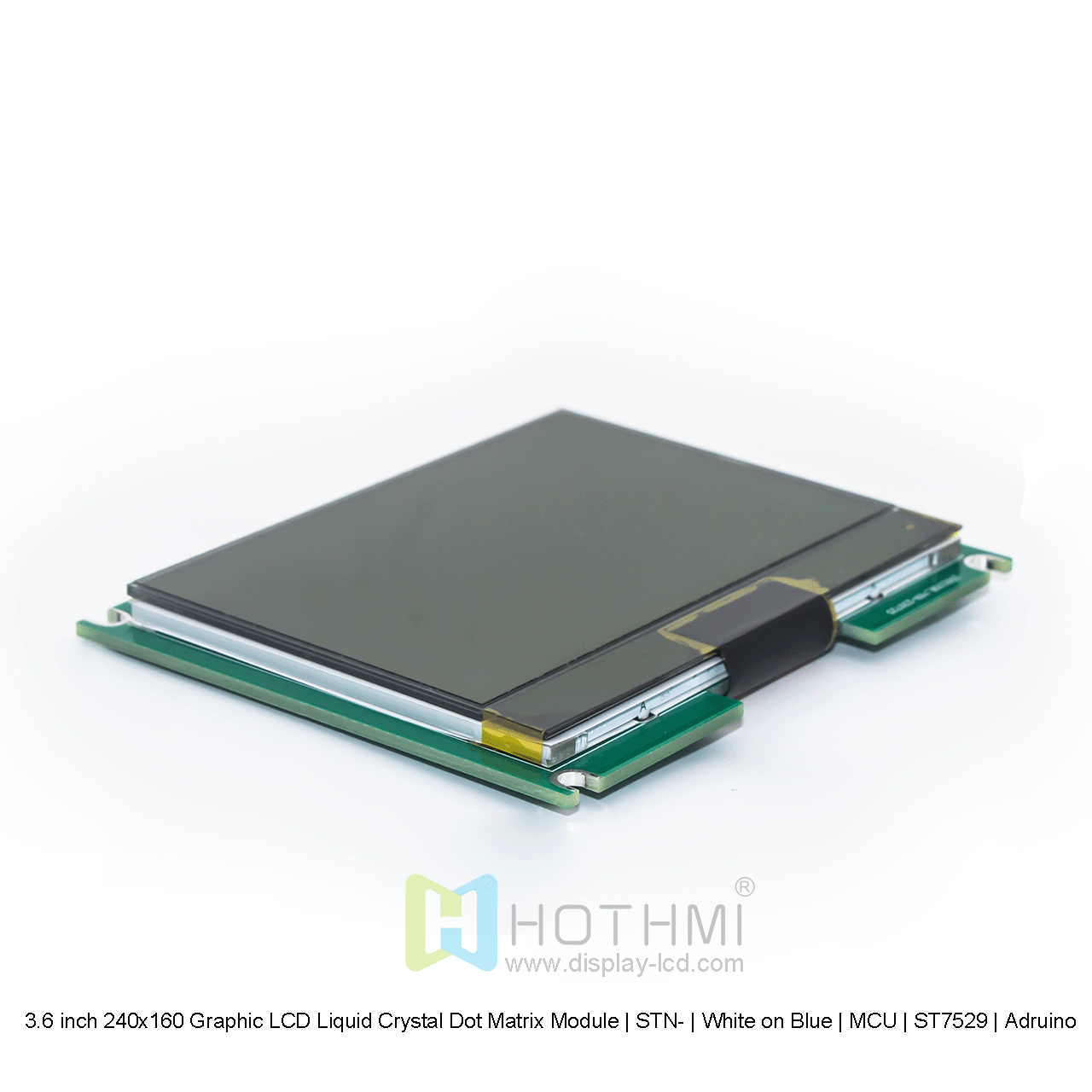

3.6 inch 240x160 Graphic LCD Liquid Crystal Dot Matrix Module | STN- | White on Blue | MCU | ST7529 | Arduino
This HOT Display 240x160 Graphic LCD Display Module displays illuminated white pixels on a blue background. This fully transparent LCD display is carefully designed to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display utilizes its fully transparent polarizer, the backlight fully passes through, the display brightness is high, and the screen is easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
The Graphic LCD Display Module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This product model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
