China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / HI /VGA TFT LCD Display Modules / 10.1 inch High-Brightness TFT LCD Module | 1024x600 pixel For Raspberry Pi

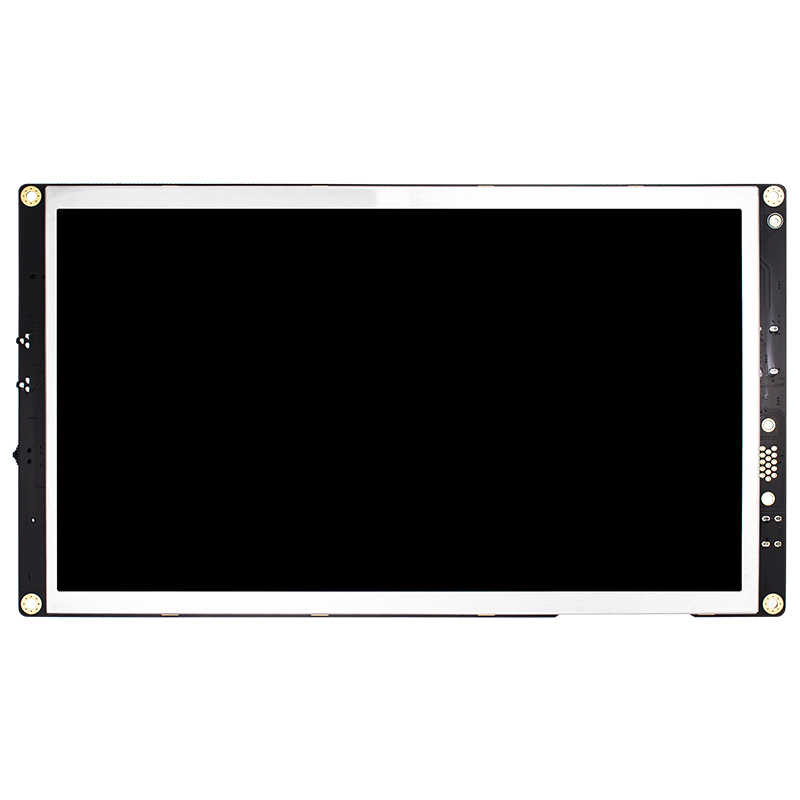

10.1 inch High-Brightness TFT LCD Module | 1024x600 pixel For Raspberry Pi

? Model: HTM-H101A9-HI-A05

? Type: HI with board module
? Display pixels: 1024x600 Px

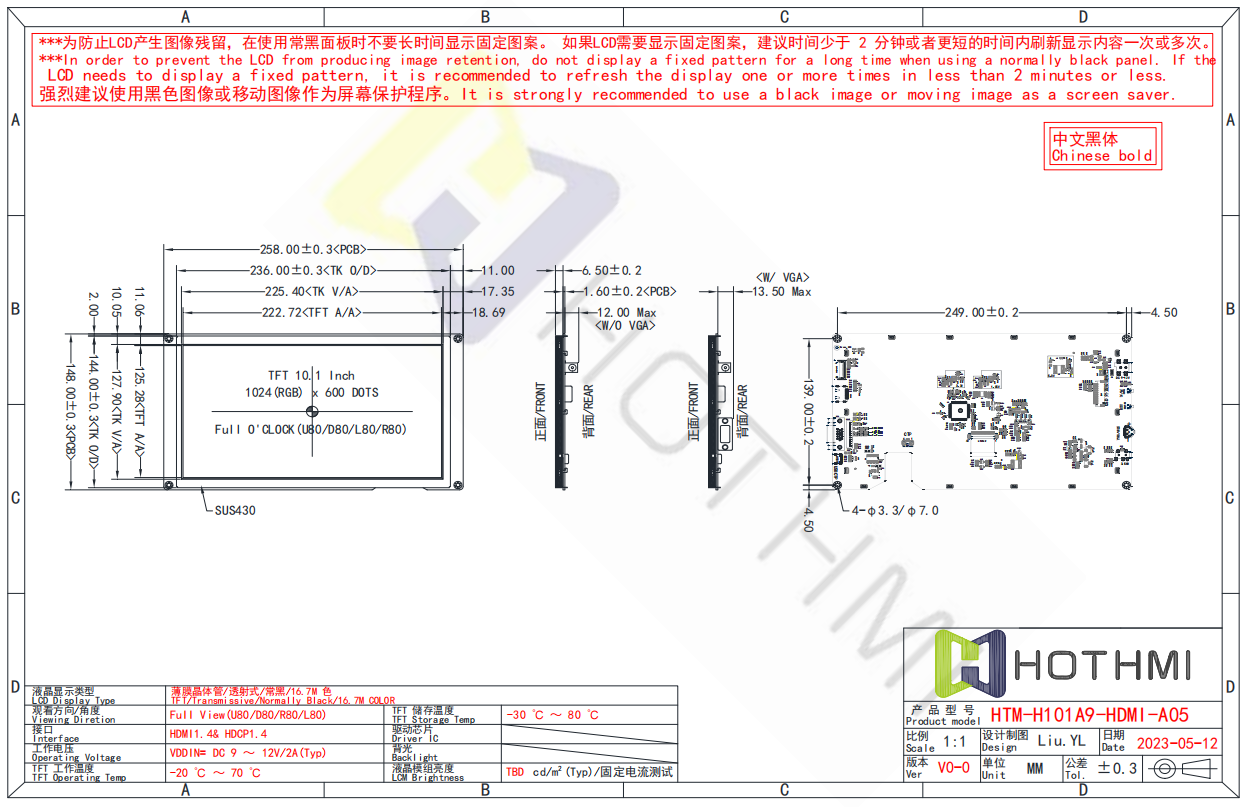

? Overall dimensions (Mm): 258x148x6.5
? Display inches: 10.1"
? AA size (Mm): 222.72x125.28
? Application: Charging pile
? Viewing angle: IPS full viewing angle
? Backlight/Brightness: 1300cd/M2
? Pin: 42pin
? Interface: HI/VGA
? Special instructions: Exclusively for charging piles
? Working temperature: -20~70℃
? Power supply voltage: 9V～12V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

HTM-H101A9-HI-A05 is a 10.1-inch color LCD module with HI driver board, 1024x600 resolution, optional resistive touch screen and capacitive touch screen, and USB interface driver board. In order to make it more convenient for customers to use, we redesigned the HI driver board and integrated it with the display screen, which can save more space for customers. Four positioning holes make installation more convenient for customers. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in vehicles, security, various instruments, smart devices, etc. Applicable to Raspberry Pi, etc. When used on Raspberry Pi, it is compatible with Raspbian, Ubuntu, WIN10 IOT and other operating systems, and supports microcontroller touch. The desktop computer is compatible with Windows 7/8/8.1/10 and other systems. It can be equipped with capacitive touch and supports 10-point touch. All materials comply with environmental requirements RoHS standards.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections

Touchscreen Add-On Components:

Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design.

Interface Customization:

Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals.

Cover Glass:

Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H101A9-HI-A05	January 01, 2024	1.99MB
