China LCD TFT Display Manufacturer, Global Supplier

HOME / Product / Character LCD Modules / Character LCD Module |16*2 STN+ Yellow/Green with Side Yellow/Green Backlight Display-Arduino

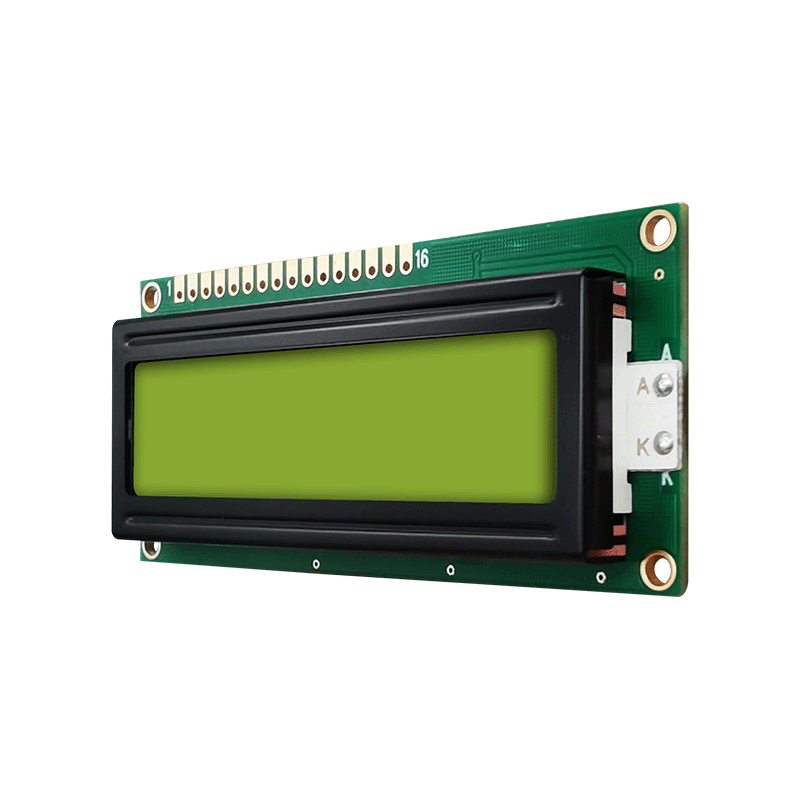

Character LCD Module |16*2 STN+ Yellow/Green with Side Yellow/Green Backlight Display-Arduino

? Model: HTM1602A-00Y-A5P

? Type: Character LCD Module
? Display content: 16x2 characters
? Overall dimensions (mm): 80.0x36.0x13.1
? VA size (mm): 64.5x15.8
? AA size (mm): 55.8x10.64
? Point spacing mm: 0.62x0.64
? Product application: industrial control
? Viewing angle: 6H
? Backlight type or: yellow-green
? Number of PINs: 16PIN
? Interface mode: MCU/8bit
? Special instructions: Anti-static ESD 8KV
? Working temperature: -20~70℃
? Power supply voltage: 5.0v
? Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Module |16*2 STN+ Yellow/Green with Side Yellow/Green Backlight Display-Arduino
Character LCD Module is a 16x2 character display with transflective LCD technology that shows dark pixels on a yellow/green background, offering excellent visibility in both ambient light conditions and with the assistance of the side green LED backlight. With a wide operating temperature range of -20 to 70 degrees Celsius, this display is suitable for indoor and outdoor environments. It comes with a built-in ST7066U controller and flex cable, providing a 6:00 optimal view. The display supports both 4-bit and 8-bit parallel MPU interfaces and operates at a 5.0V supply voltage. Additionally, it is RoHS compliant, adhering to environmentally friendly standards.

Product parameters	Specification content	unit
Model name	HTM1602A-00Y-A5P
Character display line	16 x 2	dots
Module Size	80.0(W)×36.0×13.1 (MAX)	mm
Visible (VA) area	64.0 (W) x15.8	mm
AA size	55.8(W) x 10.64(H)mm	mm
Point (Pixel) Size	0.52 x 0.54	mm
Point (pixel) spacing	0.62 x 0.64mm	mm
Driver chip	ST7066U
supply voltage	5V	V
Backlight	Yellow green LED
display mode	STN+Yellow Green
Driving method	duty cycle 1/16
type	Character LCD
characteristic	transflective
